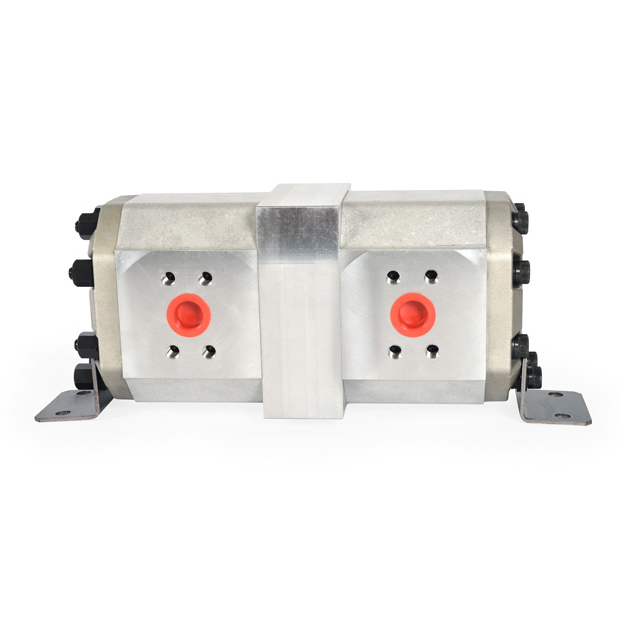

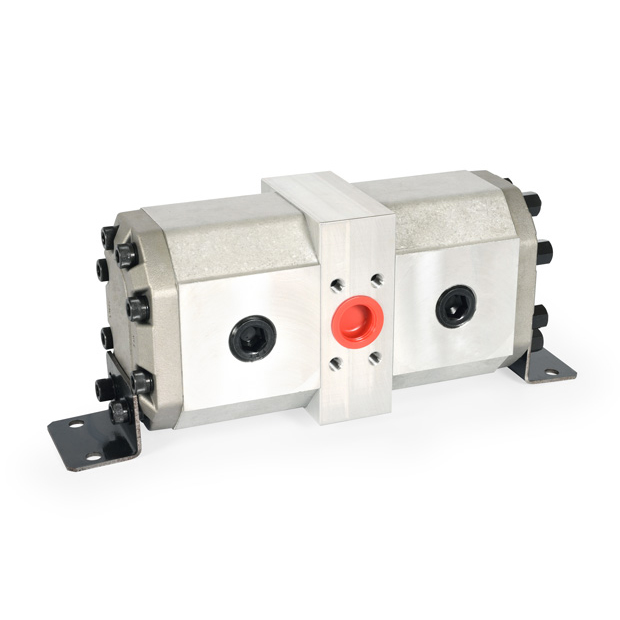

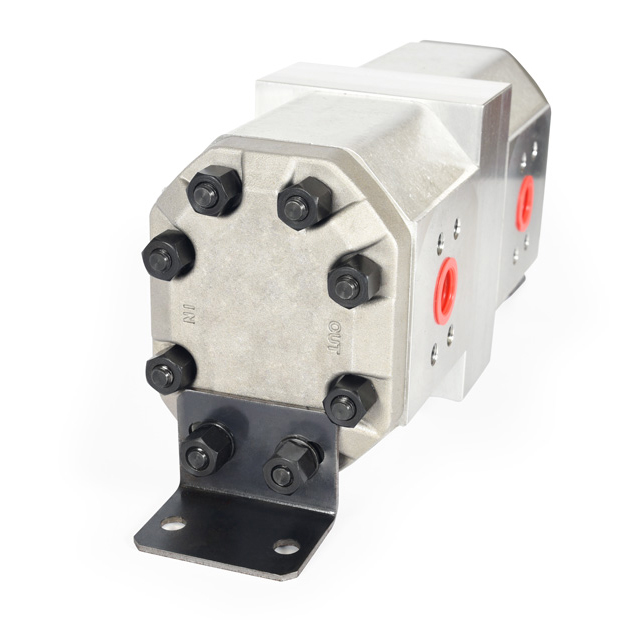

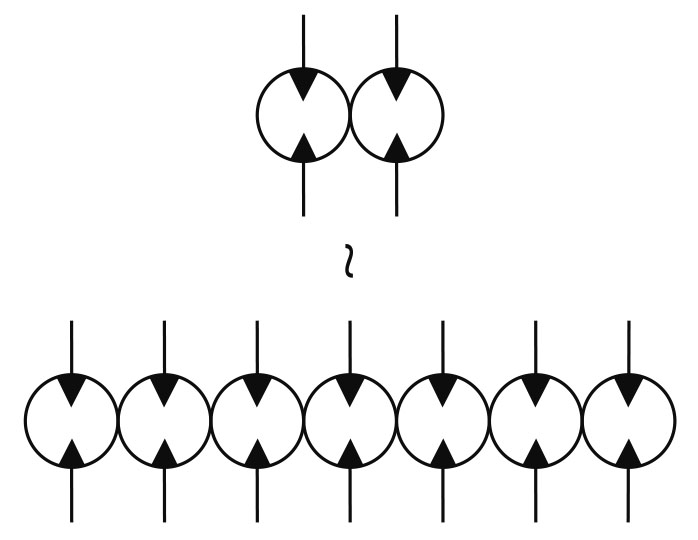

■ SCHEMATIC SYMBOL
■ ORDER CODES
DFM-5 02A - 63 M
1 2 - 3 4
1. Model Name : DFM-5
2. Stations :
02A: 2 stations
03A: 3 stations
04A: 4 stations
05A: 5 stations
06A: 6 stations
07A: 7 stations
3. Flow Rate :
40, 50, 55, 63, 75, 80, 90
4. Functional Type :
M: synchronous flow divider
MOR: with external drain relief valve
■ SPECIFICATIONS
| Model | Accurate Displacement Capacity ( cc/rev ) |
Operating Pressure ( kgf/cm2 ) |
Speed ( r.p.m. ) |
|
|---|---|---|---|---|
| Loaded | Unloaded | |||
| DFM-50*A-40 | 40 | 210 | 1000 | 2000 |
| DFM-50*A-50 | 50 | 210 | 1000 | 2000 |
| DFM-50*A-55 | 55 | 210 | 1000 | 2000 |
| DFM-50*A-63 | 63 | 210 | 1000 | 2000 |
| DFM-50*A-75 | 75 | 210 | 1000 | 2000 |
| DFM-50*A-80 | 80 | 210 | 1000 | 2000 |
| DFM-50*A-90 | 90 | 210 | 1000 | 2000 |

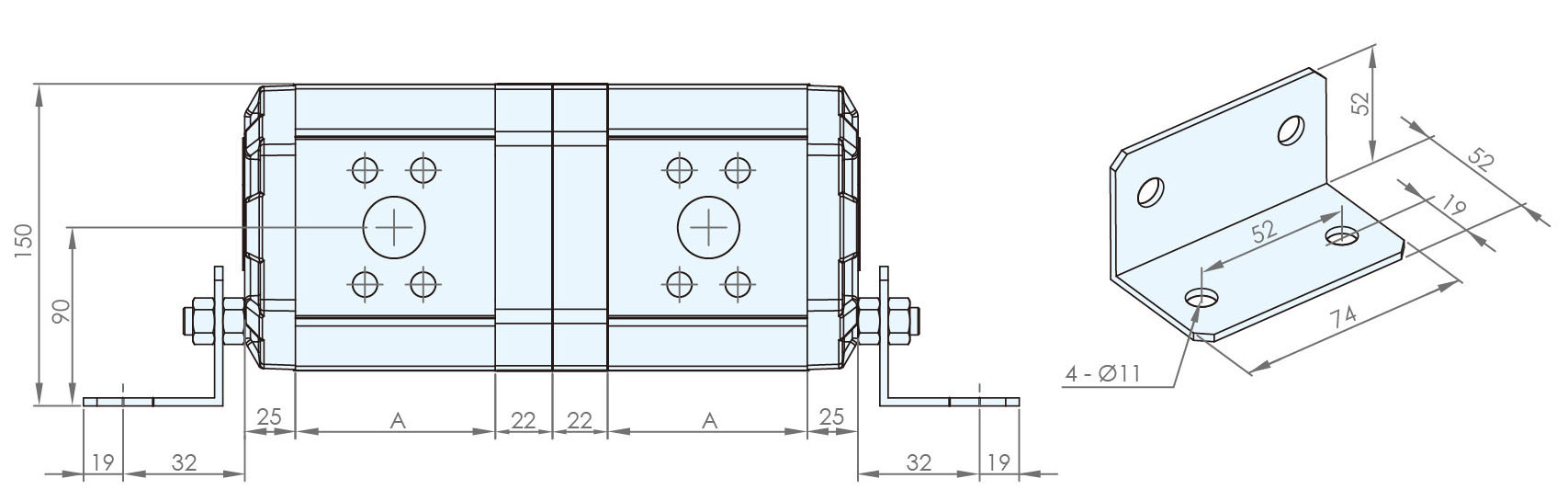

■ DIMENSIONS ( unit : mm )
DFM-502A
| Model | 502A |
|---|---|
| 40M | 92 |
| 50M | 102 |
| 55M | 92 |
| 63M | 98 |
| 75M | 106 |
| 80M | 110 |
| 90M | 117 |

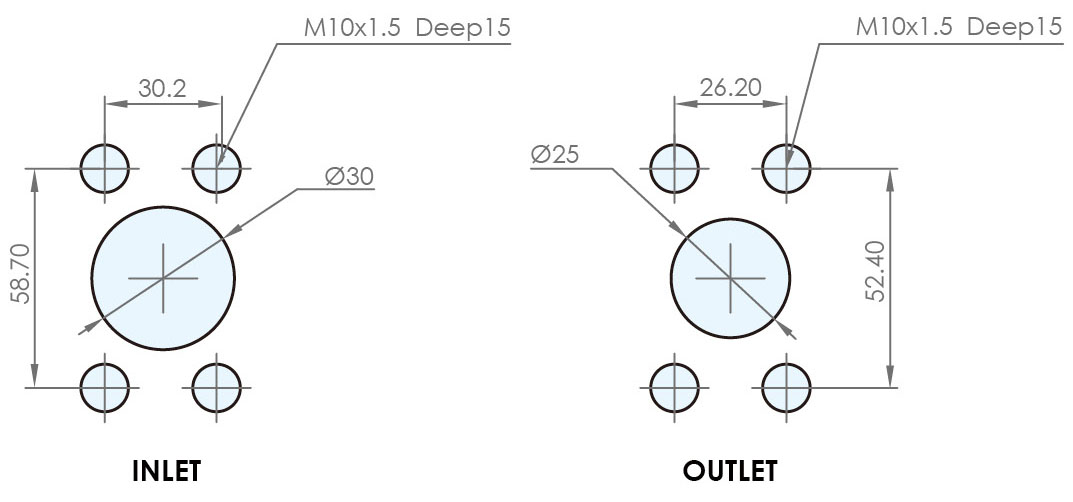

■ INLET & OUTLET SIZE ( unit : mm )
