同步馬達

  1. 同步馬達
DFM - 3 系列

DFM - 3 系列

排量：4 ~ 35cc / rev
最高壓力：210kgf / cm² (3000psi)
/
/
/
/

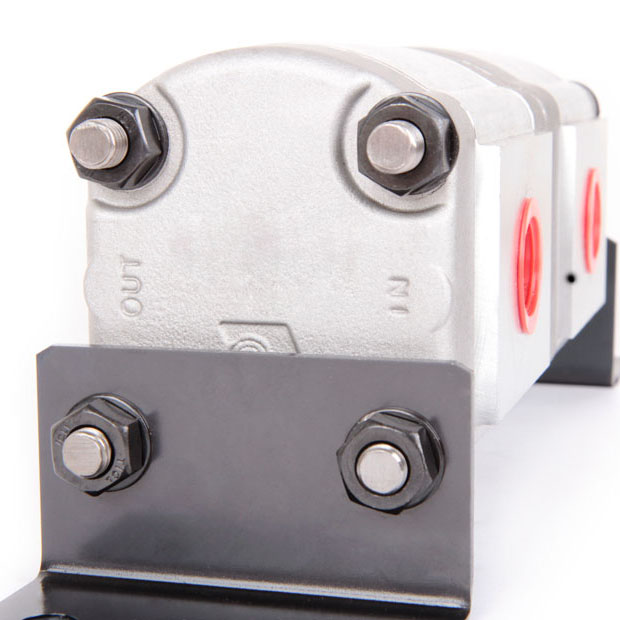

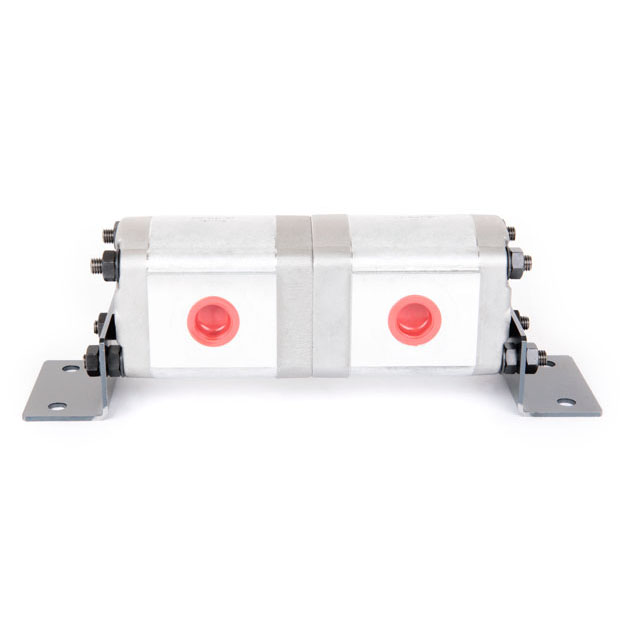

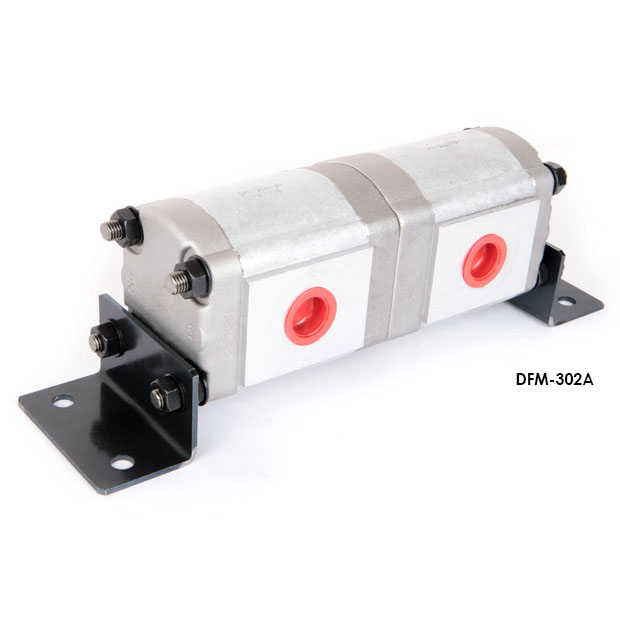

  • DFM-302A19M.jpg
  • DFM-302A19M_02.jpg
  • DFM-302A19M_03.jpg

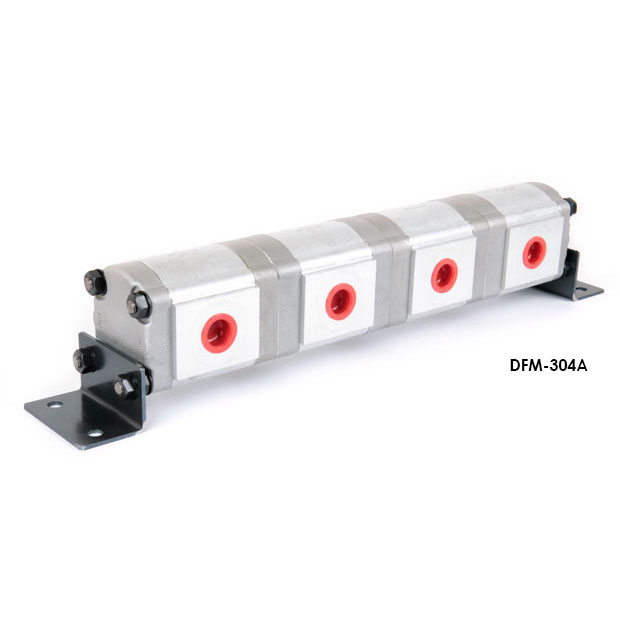

  • DFM-304A19M.jpg
詳細介紹
■ SCHEMATIC SYMBOL





■ ORDER CODES

DFM-3 02A - 11 M
     1      2   -  3   4
1. Model Name : DFM-3
2. Stations :
      02A: 2 stations
      03A: 3 stations
      04A: 4 stations
      05A: 5 stations
      06A: 6 stations
      07A: 7 stations
3. Flow Rate :
      4, 6, 8, 11, 13, 14, 17, 19, 23, 25, 28, 30, 35
4. Functional Type :
      M: synchronous flow divider



■ SPECIFICATIONS
Model Accurate
Displacement
Capacity
( cc/rev )		 Operating
Pressure
( kgf/cm2 )		 Speed
( r.p.m. )		 Ports Size
( PT )
Loaded Unloaded Inlet Outlet
DFM-30*A-4M 4 210 1000 2000 3/4" 1/2"
DFM-30*A-6M 6 210 1000 2000 3/4" 1/2"
DFM-30*A-8M 8.4 210 1000 2000 3/4" 1/2"
DFM-30*A-11M 11 210 1000 2000 3/4" 1/2"
DFM-30*A-13M 13 210 1000 2000 3/4" 1/2"
DFM-30*A-14M 14.3 210 1000 2000 3/4" 1/2"
DFM-30*A-17M 16.5 210 1000 2000 3/4" 1/2"
DFM-30*A-19M 19.2 210 1000 2000 3/4" 1/2"
DFM-30*A-23M 23 210 1000 2000 3/4" 1/2"
DFM-30*A-25M 25 210 1000 2000 1" 3/4"
DFM-30*A-28M 28 210 1000 2000 1" 3/4"
DFM-30*A-30M 30 210 1000 2000 1" 3/4"
DFM-30*A-35M 35 210 1000 2000 1" 3/4"
* The initial pressure : 30kgf/cm2
Model Weight
( kg )
DFM 302A 303A 304A 305A 306A 307A
4M 4.64 6.75 8.86 10.97 13.08 15.19
6M 4.80 6.99 9.18 11.37 13.56 15.75
8M 4.96 7.23 9.50 11.77 14.04 16.31
11M 5.26 7.68 10.10 12.52 14.94 17.36
13M 5.46 7.98 10.50 13.02 15.54 18.06
14M 5.58 8.16 10.75 13.32 15.9 18.48
17M 5.83 8.52 11.18 13.87 16.56 19.25
19M 6.04 8.85 11.66 14.47 17.28 20.09
23M 6.41 9.45 12.46 15.47 18.48 21.49
25M 6.54 9.60 12.66 15.72 18.78 21.84
28M 6.76 9.93 13.10 16.27 19.44 22.61
30M 6.96 10.23 13.50 16.77 20.04 23.31
35M 7.48 11.01 14.54 18.07 21.60 25.13
* Weight is for reference.



■ DIMENSIONS  ( unit : mm )

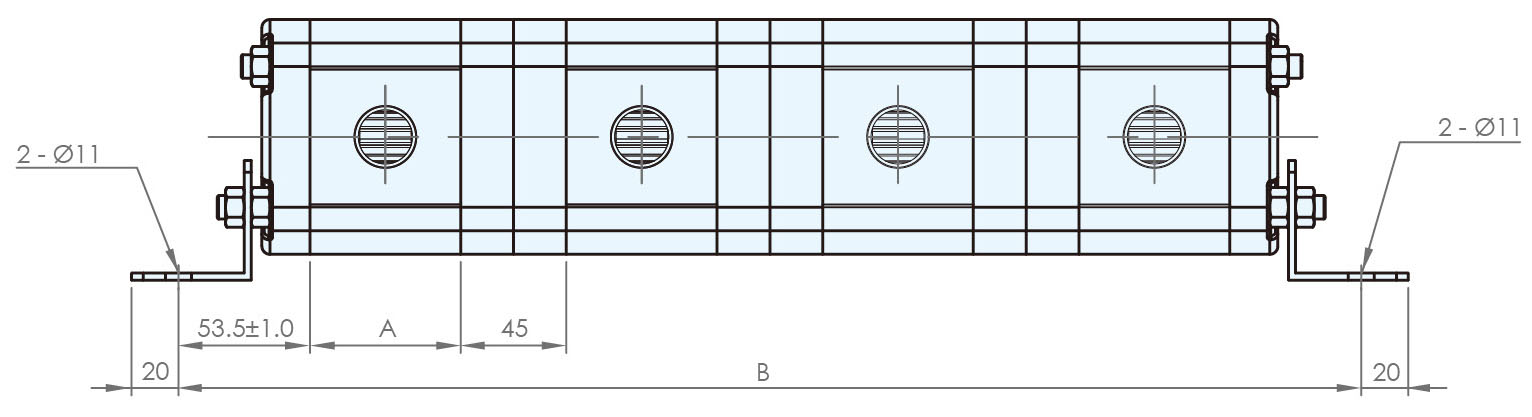

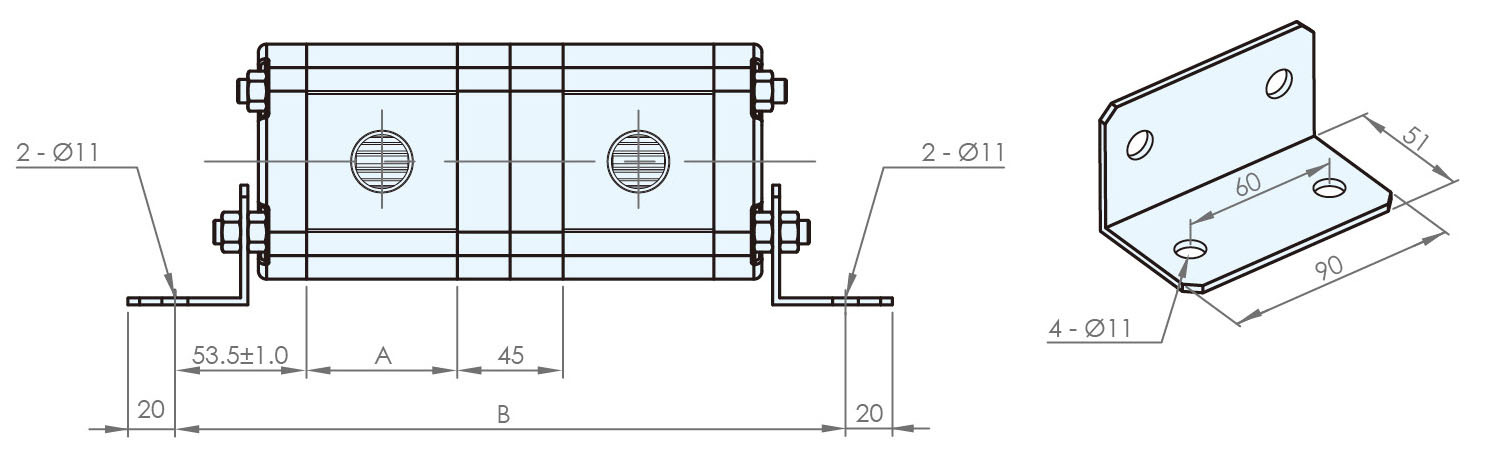

DFM-302A

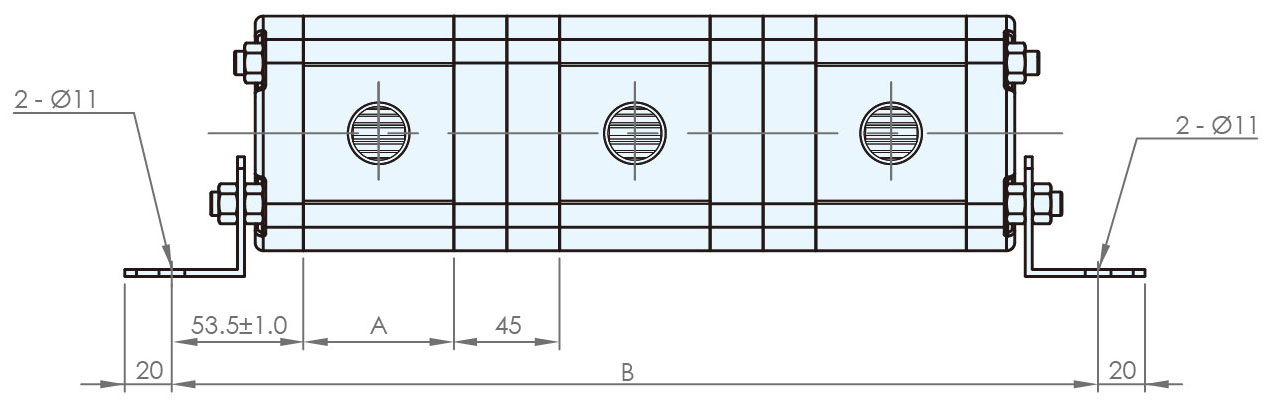

DFM-303A


DFM-304A


DFM-304A

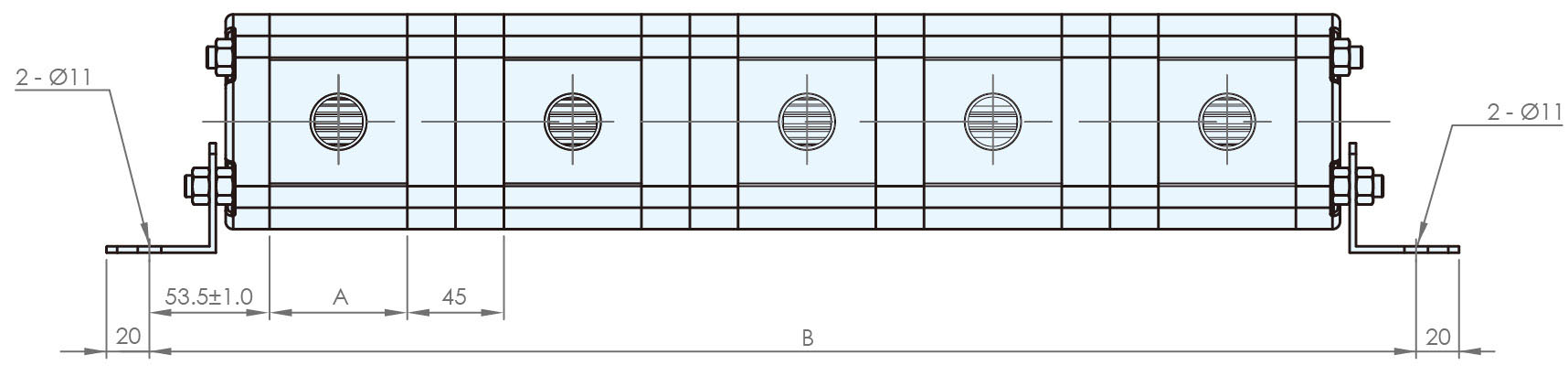

DFM-305A

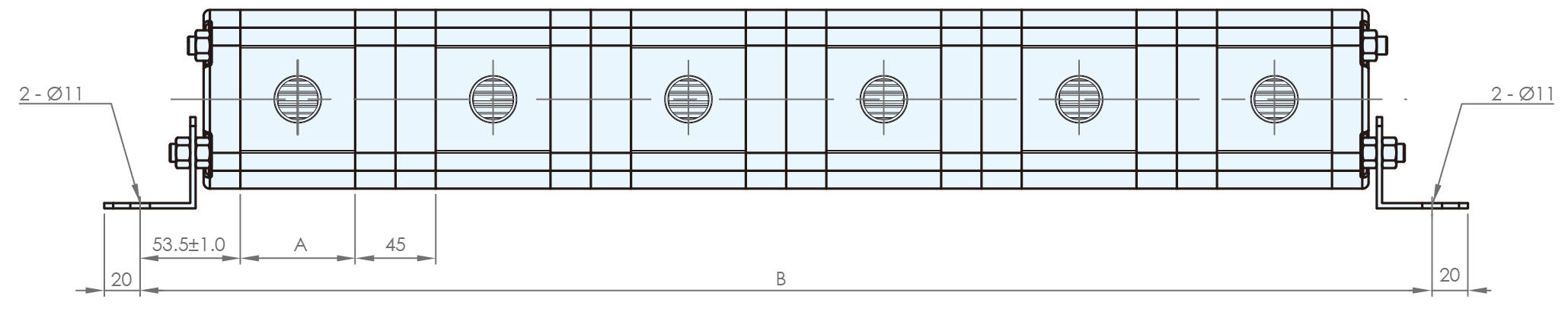

DFM-306A


DFM-307A

Model A B
DFM 302A 303A 304A 305A 306A 307A
4M 49 250 344 438 532 626 720
6M 52 256 353 450 547 644 741
8M 55 262 362 462 562 662 762
11M 60 272 377 482 587 692 797
13M 64 280 389 498 607 716 825
14M 66 284 395 506 617 728 839
17M 70 292 407 522 637 752 867
19M 74 300 419 538 657 776 895
23M 81 314 440 566 692 818 944
25M 84 320 449 578 707 836 965
28M 88 328 461 594 727 860 993
30M 92 336 473 610 747 884 1021
35M 102 356 503 650 797 944 1091
