■ SCHEMATIC SYMBOL
■ SPECIFICATIONS
| Model | Accurate Displacement Capacity ( cc/rev ) |
Max. Pressure ( kgf/cm2 ) |
Speed ( r.p.m. ) |
Weight ( kg ) |
|
|---|---|---|---|---|---|
| Max. | Min. | ||||
| HGP-2AK-F7(R/L) [ KP10-7(C/A) ] |
7.26 | 175 | 3000 | 600 | - |
| HGP-2AK-F9(R/L) [ KP10-9(C/A) ] |
9.08 | 175 | 3000 | 600 | - |
| HGP-2AK-F11(R/L) [ KP10-11(C/A) ] |
11.2 | 175 | 3000 | 600 | - |

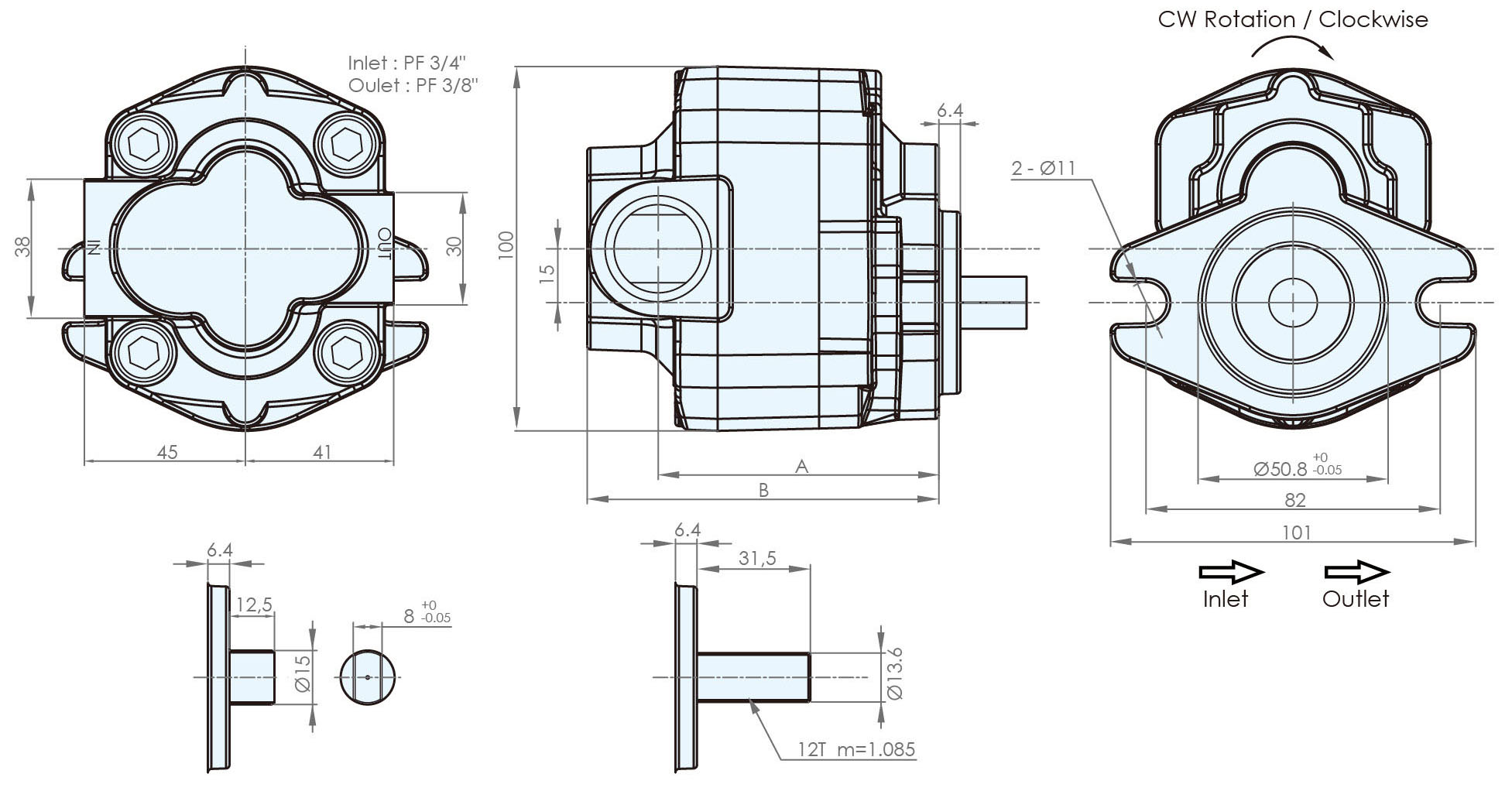

■ DIMENSIONS ( unit : mm )
