單聯齒輪泵

HGP - 1A

HGP - 1A

排量:0.5 ~ 7.8cc /rev
法蘭型式:SAE 2孔 / DIN 4孔 / European 4孔
最高壓力:250kgf/cm² (3500psi)
  • HGP-1AF2R_01.jpg
  • HGP-1AF2R_02.jpg
  • HGP-1AF2R_03.jpg
詳細介紹
■ SCHEMATIC SYMBOL





■ ORDER CODES

HGP-1A - F 08 R - X1 - 4BDA - P1
      1      - 2  3  4  - 5   -    6    -  7

1. Model Name : HGP-1A
2. Mounting :
      F: flange type
      L: foot type
3. Delivery Capacity :
      05, 08, 1, 2, 26, 3, 4, 5, 6, 8
4. Rotation Direction :
      R: clockwise
      L: counter-clockwise
      M: hydraulic motor *
5. Shaft Type :
      X: straight shaft
      Y: spline shaft
      Z: taper shaft
6. Flange Mounting Type :
      2B: SAE 2-bolt
      4BDA: DIN 4-bolt (type A)
      4BDB: DIN 4-bolt (type B)
      4BE: European 4-bolt
7. Inlet and Outlet :
      F: flange type (F1~F2)
      G: PF, G, BSPP (G1~G2)
      P: PT (P1~P2)
      N: NPT (N1~N2)
      U: UNF (U1~U2)
* Please contact the local distributors to obtain the specifications of hydraulic motors.




■ SPECIFICATIONS
Model Accurate
Displacement
Capacity

( cc/rev )
Operating
Pressure

( kgf/cm2 )
Max. Pressure
( kgf/cm2 )
Speed
( r.p.m. )
Weight
( kg )
Rate Max. Min.
HGP-1A-05 0.5 210 250 1800 4500 1000 1.0
HGP-1A-08 0.8 210 250 1800 4500 1000 1.0
HGP-1A-1 1 210 250 1800 4500 1000 1.0
HGP-1A-2 2 210 250 1800 4500 600 1.05
HGP-1A-26 2.6 210 250 1800 4500 600 1.15
HGP-1A-3 3 210 250 1800 4500 600 1.15
HGP-1A-4 4 210 250 1800 4000 600 1.18
HGP-1A-5 5 210 250 1800 3200 600 1.2
HGP-1A-6 6 210 250 1800 3200 600 1.3
HGP-1A-8 7.8 170 210 1800 3200 600 1.4
* HGP-1A-05 and HGP-1A-26 do not belong to regular products. Customized service can be provided.
* Weight is for reference.

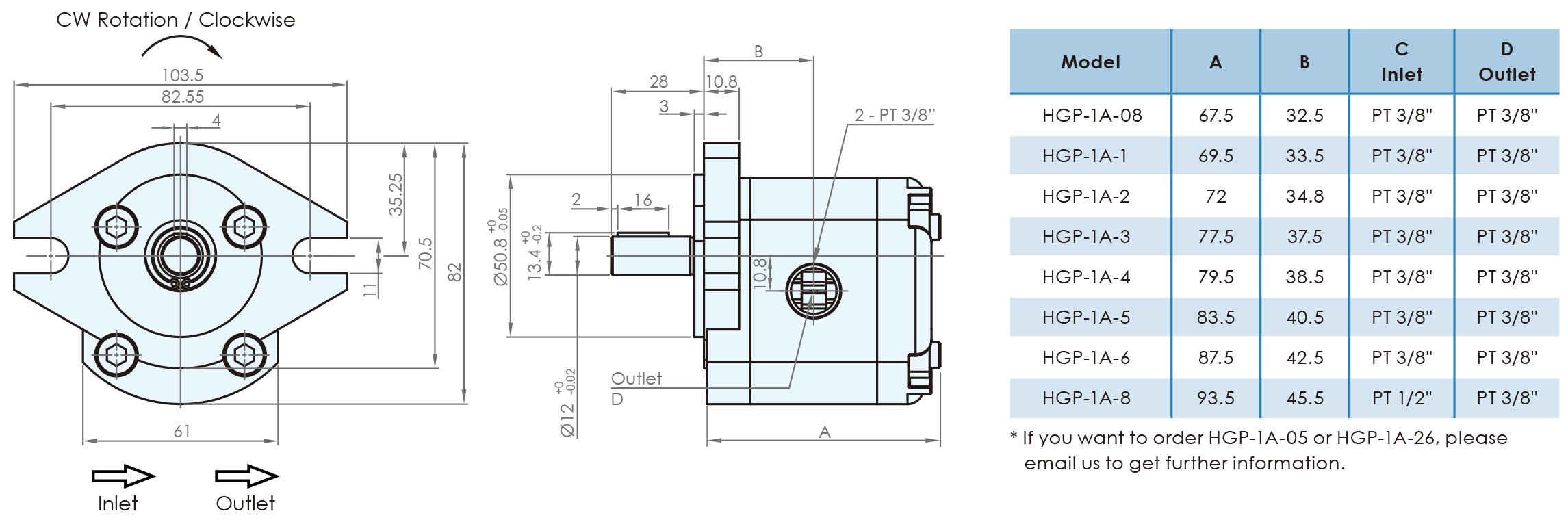

■ DIMENSIONS  ( unit : mm )

HGP-1A-2B


HGP-1A-4BD


HGP-1A-4BE




■ DECOMPOSITION CHARTS



■ DIMENSION of SHAFT  ( unit : mm )



■ INLET & OUTLET SIZE  ( unit : mm )
