單聯齒輪泵

HGP - 1.5A

HGP - 1.5A

排量:0.8 ~ 8cc / rev
最高壓力:350kgf / cm² (4900psi)

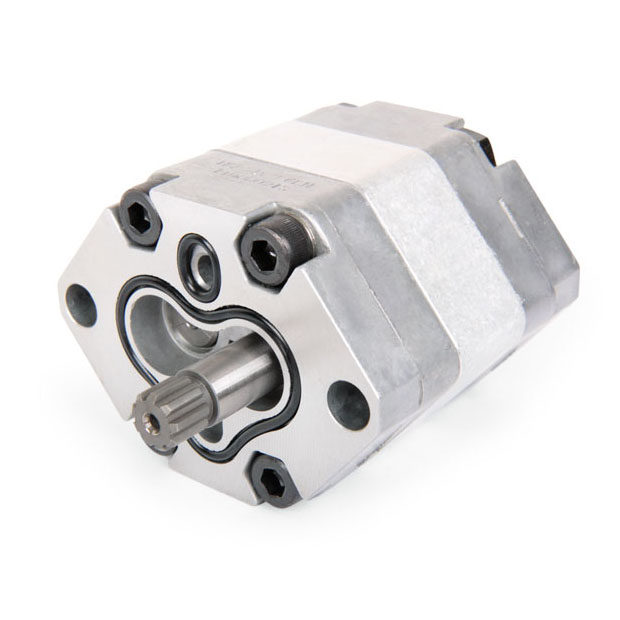

  • HGP-15AF6LN_01.jpg

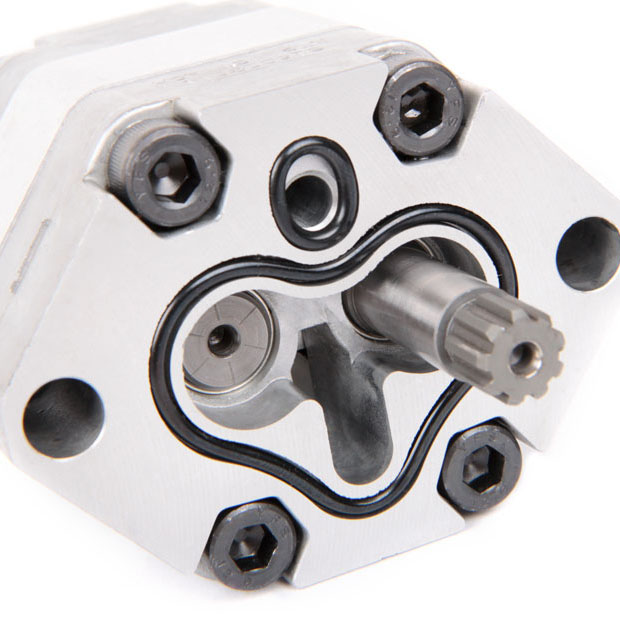

  • HGP-15AF6LN_02.jpg

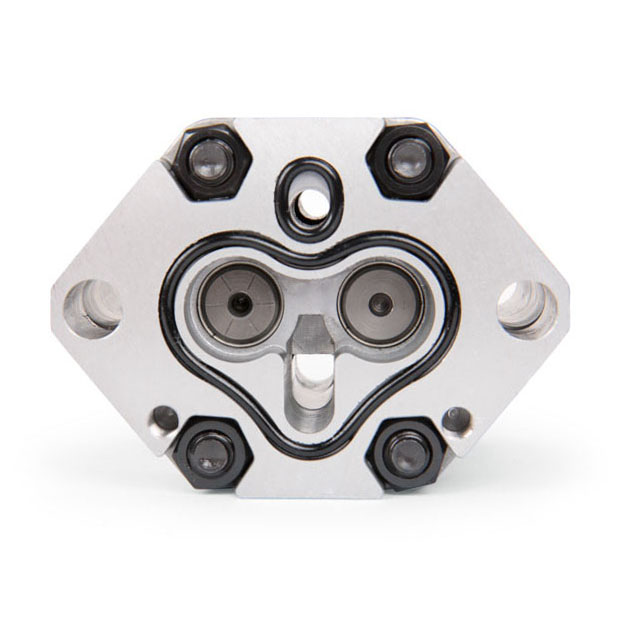

  • HGP-15AF6LN_03.jpg
詳細介紹
■ SCHEMATIC SYMBOL





■ ORDER CODES

HGP-1.5A - F 2 L - Y
       1        - 2 3 4 - 5

1. Model Name : HGP-1.5A
2. Mounting :
      F: flange type
3. Delivery Capacity :
      08, 1, 12, 16, 2, 25, 3, 4, 5, 65, 8
4. Rotation Direction :
      L: counter-clockwise
5. Shaft Type :
      Y: spline shaft




■ SPECIFICATIONS
Model Accurate
Displacement
Capacity

( cc/rev )
Operating
Pressure

( kgf/cm2 )
Max. Pressure
( kgf/cm2 )
Speed
( r.p.m. )
Weight
( kg )
Rate Max. Min.
HGP-1.5A-08 0.8 300 350 1800 5000 1000 0.89
HGP-1.5A-1 1 300 350 1800 5000 800 0.91
HGP-1.5A-12 1.2 300 350 1800 5000 800 0.92
HGP-1.5A-16 1.6 300 350 1800 5000 800 0.93
HGP-1.5A-2 2 300 350 1800 4000 800 0.94
HGP-1.5A-25 2.5 300 350 1800 4000 800 0.95
HGP-1.5A-3 3.1 300 350 1800 4000 700 0.97
HGP-1.5A-4 4 300 350 1800 4000 600 1.00
HGP-1.5A-5 5 250 300 1800 4000 500 1.04
HGP-1.5A-65 6.3 250 300 1800 3200 500 1.14
HGP-1.5A-8 8 210 250 1800 2400 500 1.17
* Weight is for reference.

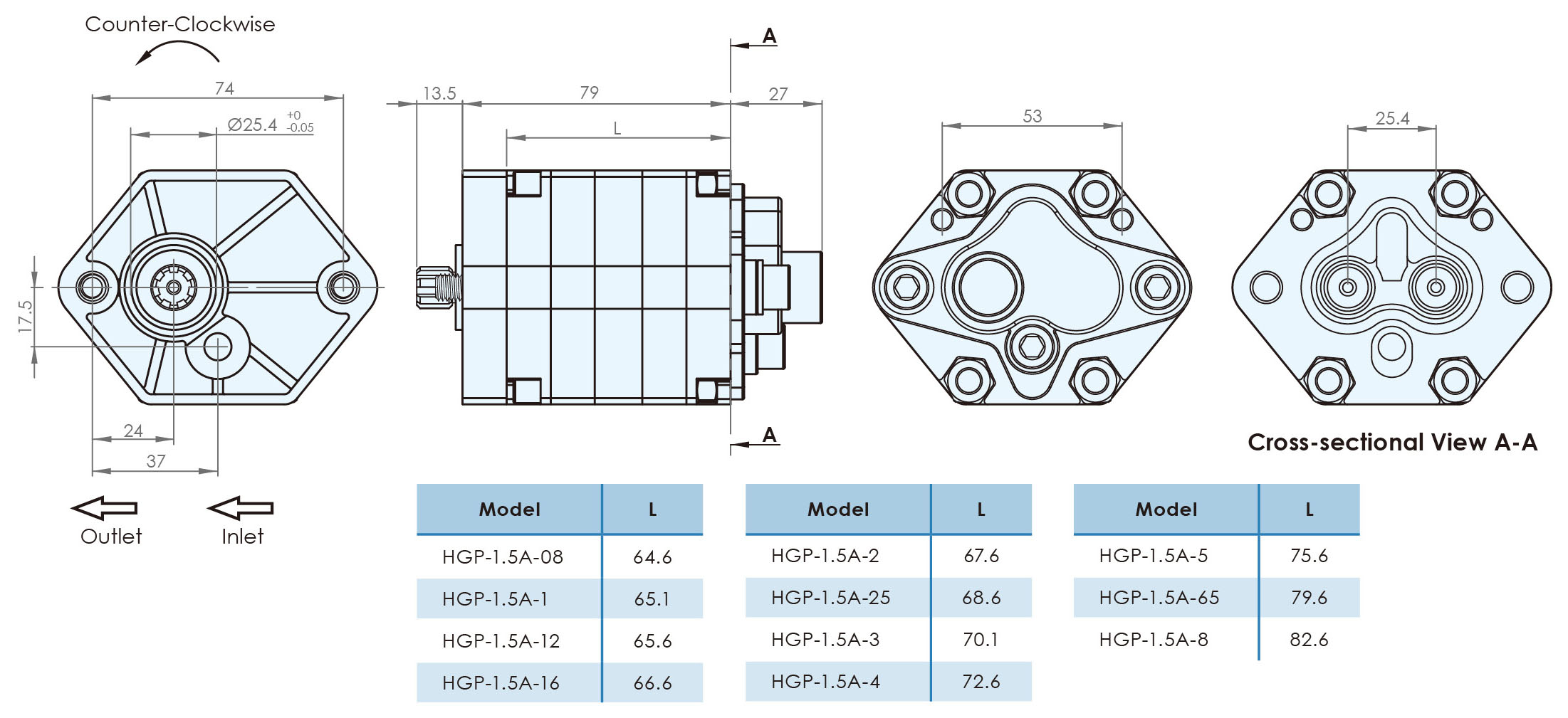

■ DIMENSIONS  ( unit : mm )

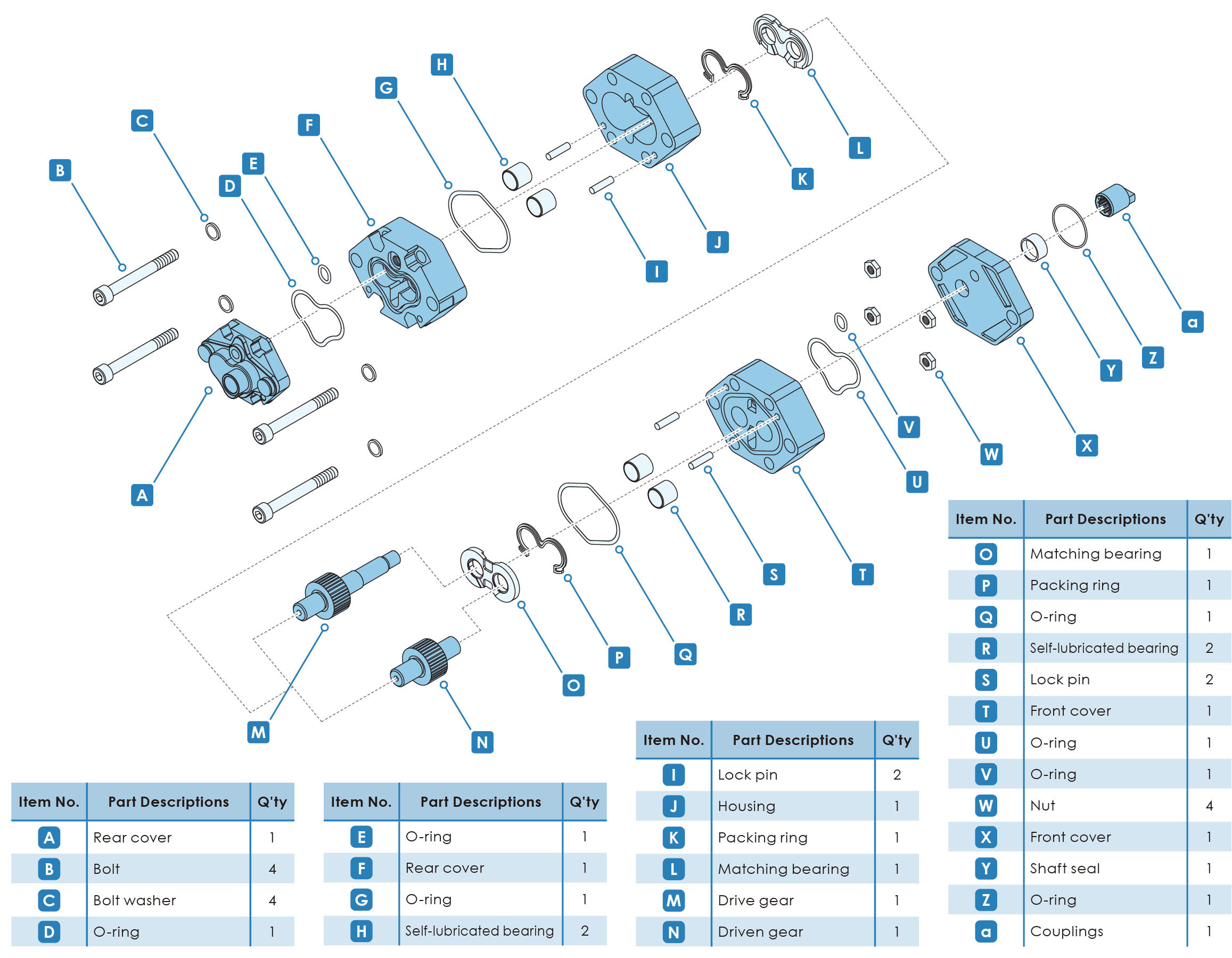

■ DECOMPOSITION CHARTS
