■ SCHEMATIC SYMBOL
■ ORDER CODES
HGP-3.5A - F 11 R
1 - 2 3 4
1. Model Name : HGP-3.5A
2. Mounting :
F: flange type
3. Delivery Capacity :
11
4. Rotation Direction :
R: clockwise
■ SPECIFICATIONS
| Model | Accurate Displacement Capacity ( cc/rev ) |
Operating Pressure ( kgf/cm2 ) |
Max. Pressure ( kgf/cm2 ) |
Max. Speed ( r.p.m. ) |
Weight ( kg ) |
|---|---|---|---|---|---|
| HGP-3.5A-F11R | 11 | 240 | 280 | 3000 | 16 |

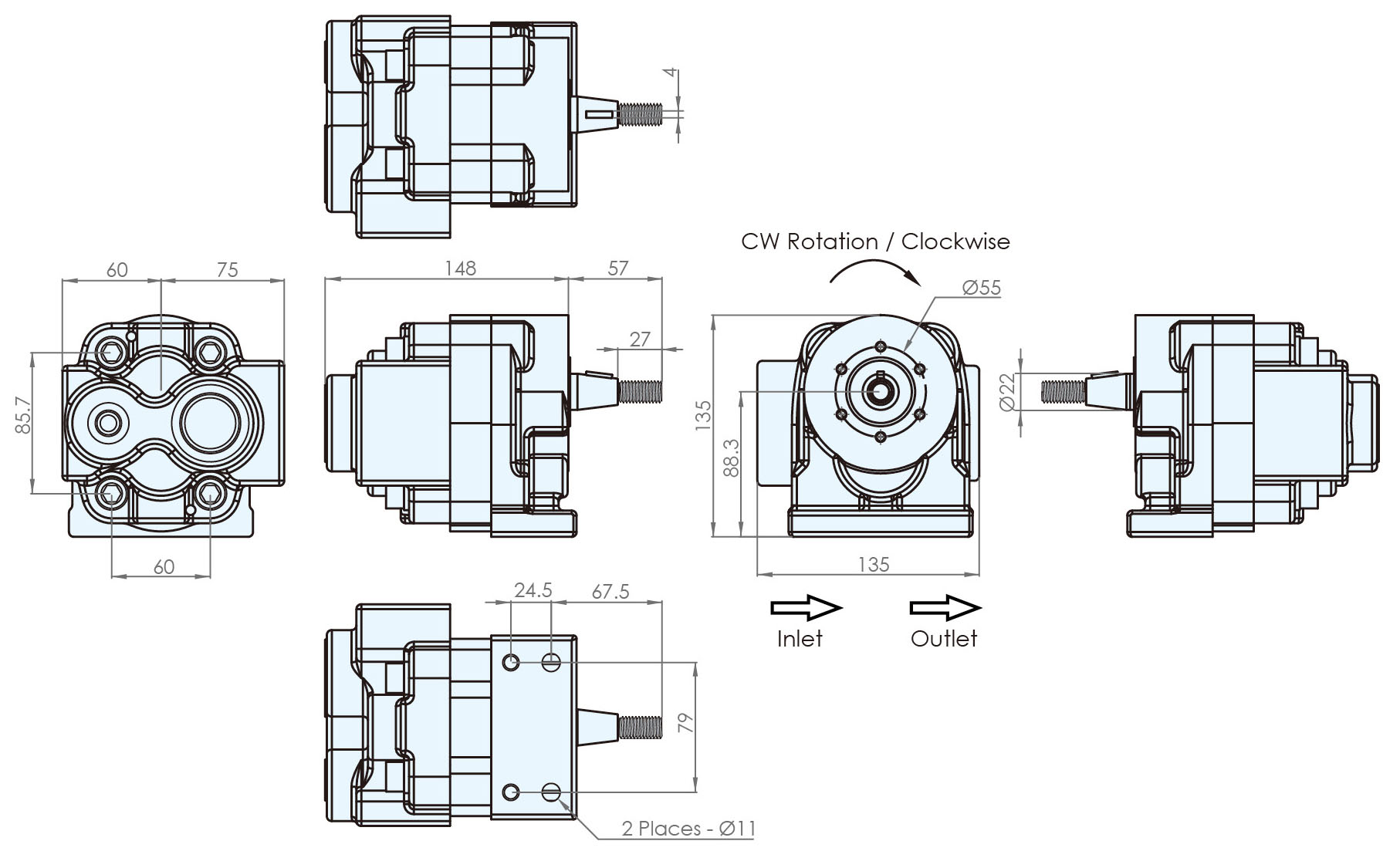

■ DIMENSIONS ( unit : mm )
