■ SCHEMATIC SYMBOL
■ ORDER CODES
HGP-55A - F 80 63 R - Z1 - 2B - P2
1 - 2 3 3 4 - 5 - 6 - 7
1. Model Name : HGP-55A, HGP-555A
2. Mounting :
F: flange type
L: foot type
3. Delivery Capacity :
22, 26, 33, 44, 50, 55, 63, 70, 75, 80, 90
4. Rotation Direction :
R: clockwise
L: counter-clockwise
5. Shaft Type :
X: straight shaft
Y: spline shaft
Z: taper shaft
6. Flange Mounting Type :
2B: SAE 2-bolt
4BD: DIN 4-bolt
7. Inlet and Outlet :
F: flange type (F1~F6)
G: PF, G, BSPP (G1)
P: PT (P1)
N: NPT (N1)
U: UNF(U1~U2)
■ SPECIFICATIONS
| Model | Accurate Displacement Capacity ( cc/rev ) |
Operating Pressure ( kgf/cm2 ) |
Max. Pressure ( kgf/cm2 ) |
Speed ( r.p.m. ) |
Weight ( kg ) |
|
|---|---|---|---|---|---|---|
| Loaded | Unloaded | |||||
| HGP-55A-2222 | 22+22 | 250 | 300 | 3000 | 700 | 11.22 |
| HGP-55A-2626 | 26+26 | 250 | 300 | 3000 | 700 | 11.38 |
| HGP-55A-3333 | 33+33 | 250 | 300 | 3000 | 700 | 11.66 |
| HGP-55A-4444 | 44+44 | 210 | 250 | 3000 | 700 | 12.10 |
| HGP-55A-5050 | 50+50 | 210 | 250 | 3000 | 700 | 12.36 |
| HGP-55A-5555 | 55+55 | 210 | 250 | 3000 | 700 | 12.54 |
| HGP-55A-6363 | 63+63 | 210 | 250 | 3000 | 600 | 12.86 |
| HGP-55A-7070 | 70+70 | 180 | 210 | 3000 | 600 | 13.14 |
| HGP-55A-7575 | 75+75 | 180 | 210 | 3000 | 600 | 13.34 |
| HGP-55A-8080 | 80+80 | 170 | 200 | 3000 | 600 | 13.54 |
| HGP-55A-9090 | 90+90 | 160 | 190 | 2500 | 600 | 13.94 |
* Weight is for reference.
■ DIMENSIONS ( unit : mm )

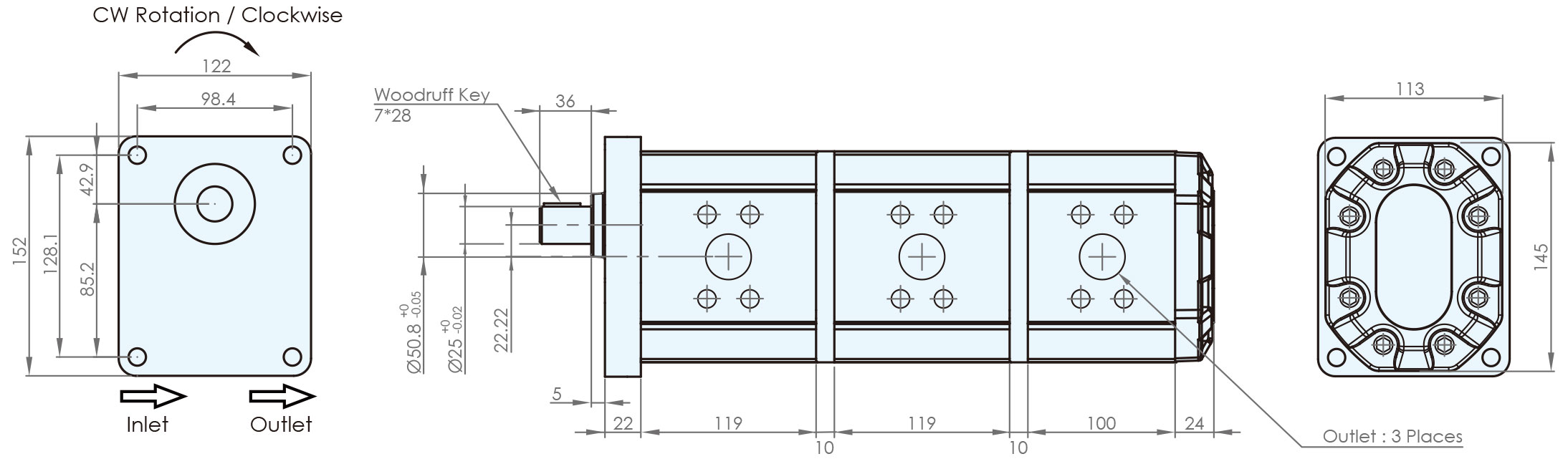

HGP-55A-2B
HGP-555A-2B
HGP-555A-4BD
■ INLET & OUTLET SIZE ( unit : mm )
