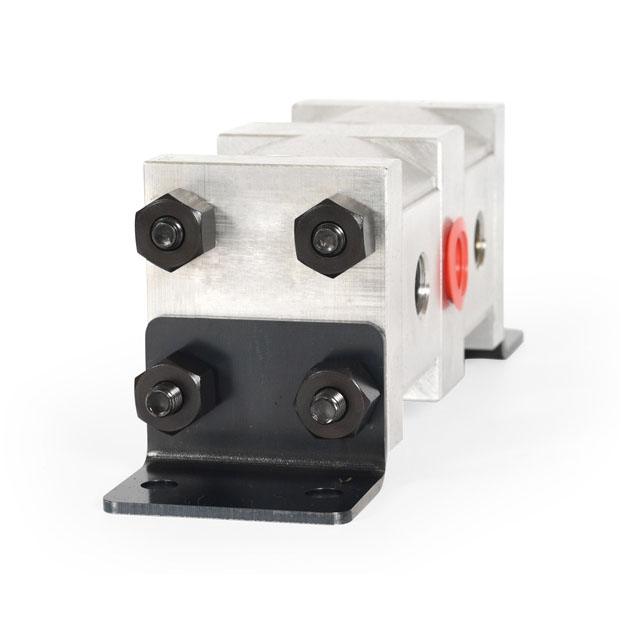

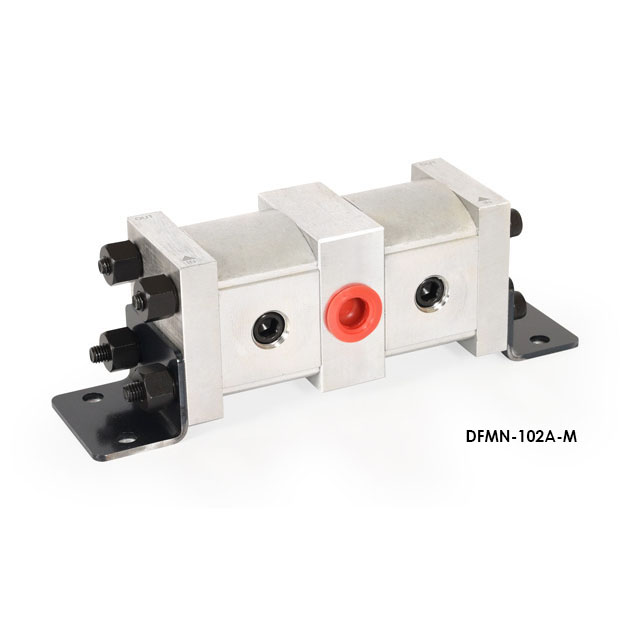

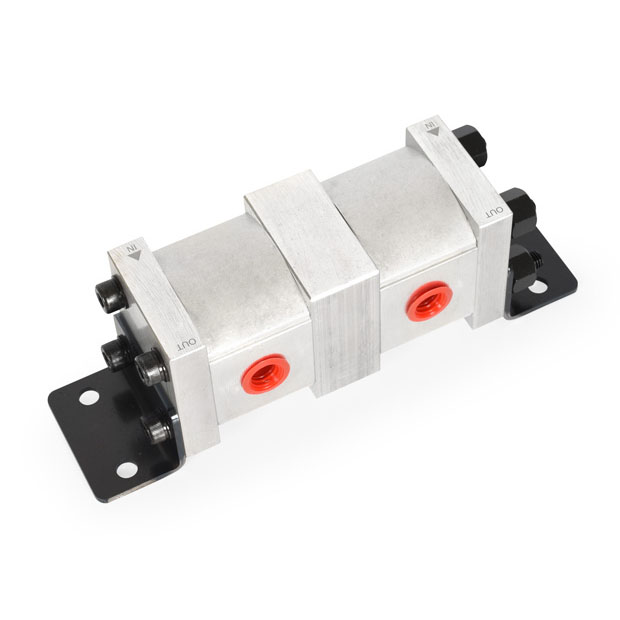

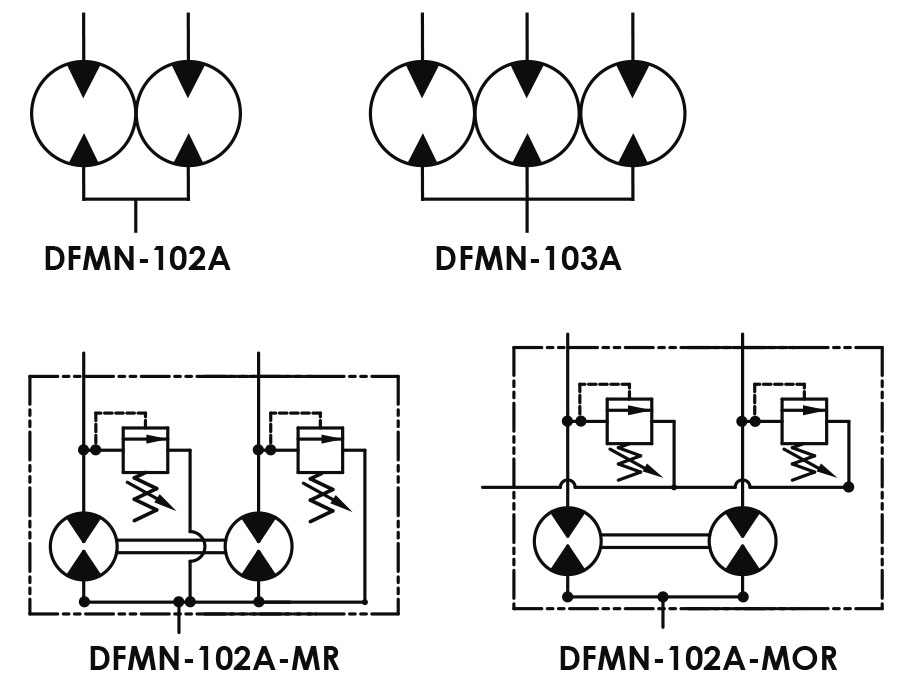

■ SCHEMATIC SYMBOL
■ ORDER CODES
DFMN1 02A - 4 MOR
1 2 - 3 4
1. Model Name : DFMN-1
2. Stations :
02A: 2 stations
03A: 3 stations
04A: 4 stations
05A: 5 stations
06A: 6 stations
07A: 7 stations
3. Flow Rate :
2, 3, 4, 6, 8
4. Functional Type :
M: synchronous flow divider

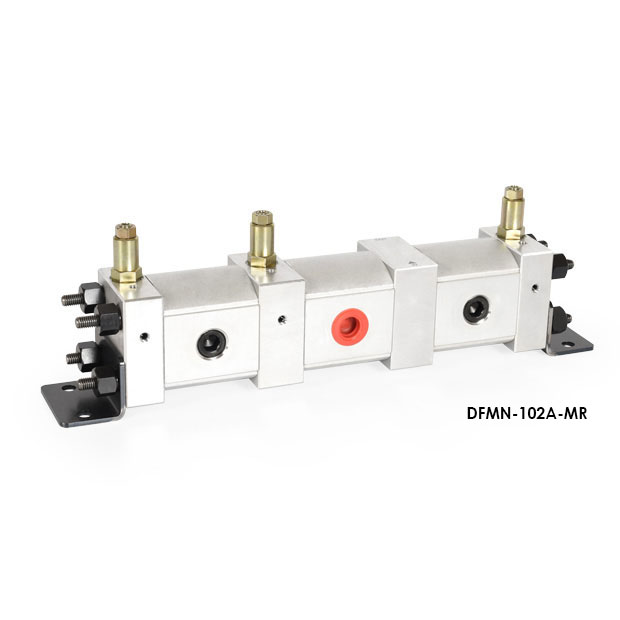

MR: with internal drain relief valve

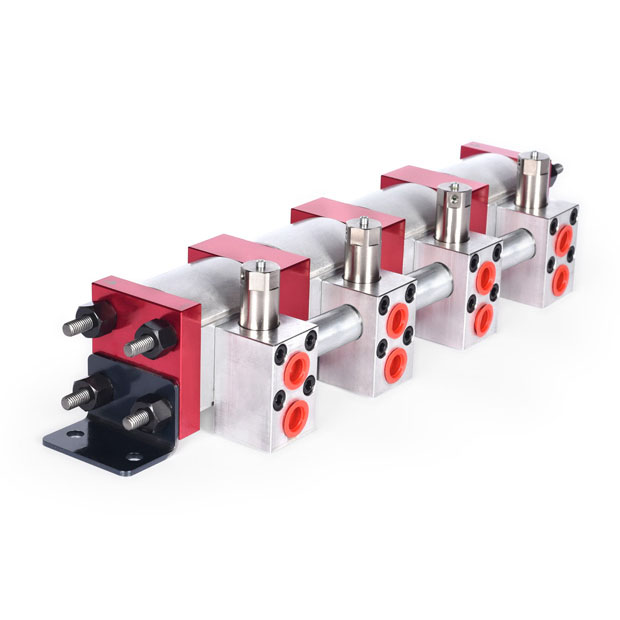

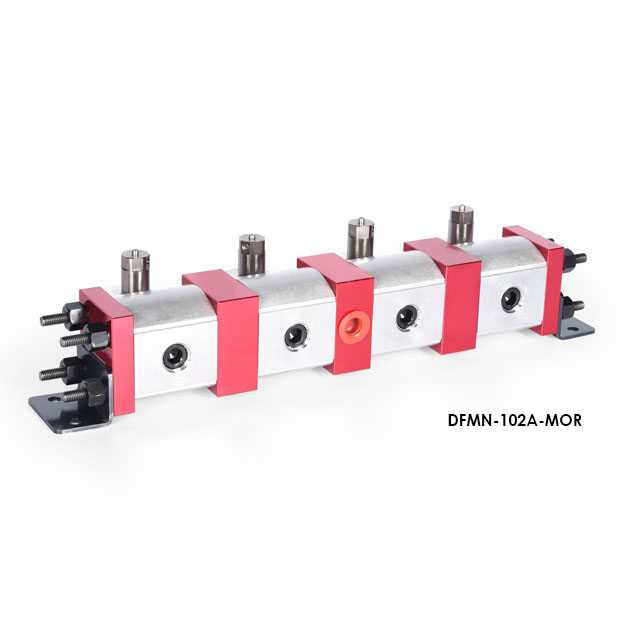

MOR: with external drain relief valve
■ SPECIFICATIONS
| Model | Accurate Displacement Capacity ( cc/rev ) |
Operating Pressure ( kgf/cm2 ) |
Speed ( r.p.m. ) |
Ports Size ( PT ) |
||
|---|---|---|---|---|---|---|
| Loaded | Unloaded | Inlet | Outlet | |||
| DFMN-10*A-2M | 2 | 210 | 1000 | 2000 | 1/2" | 3/8" |
| DFMN-10*A-3M | 3 | 210 | 1000 | 2000 | 1/2" | 3/8" |
| DFMN-10*A-4M | 4 | 210 | 1000 | 2000 | 1/2" | 3/8" |
| DFMN-10*A-6M | 6 | 210 | 1000 | 2000 | 1/2" | 3/8" |
| DFMN-10*A-8M | 7.8 | 210 | 1000 | 2000 | 1/2" | 3/8" |

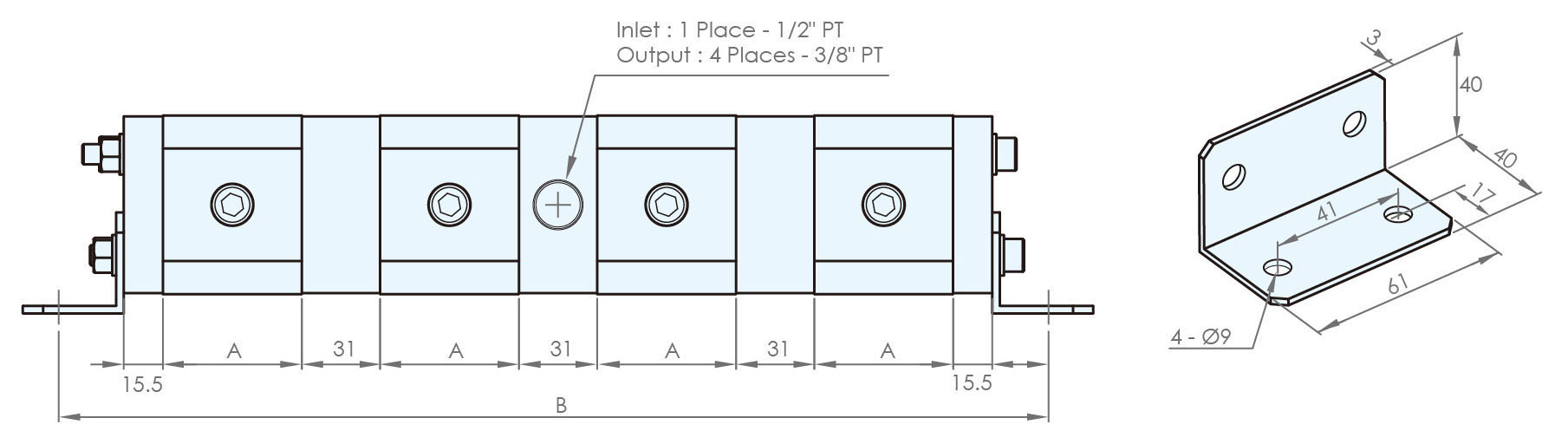

■ DIMENSIONS ( unit : mm )
DFMN-104A-M

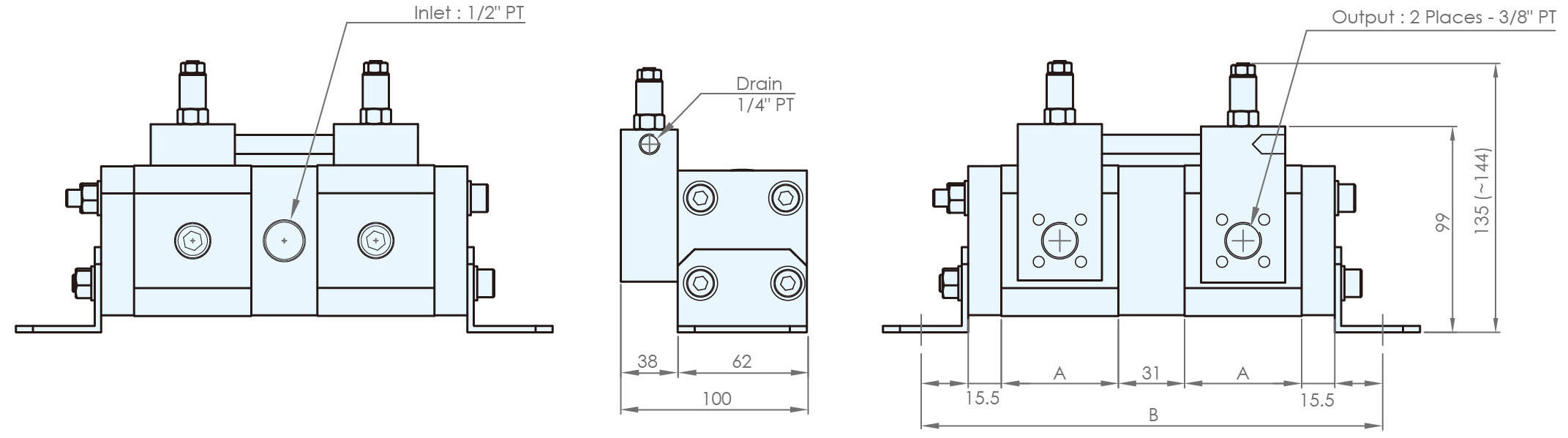

DFMN-102A-MOR

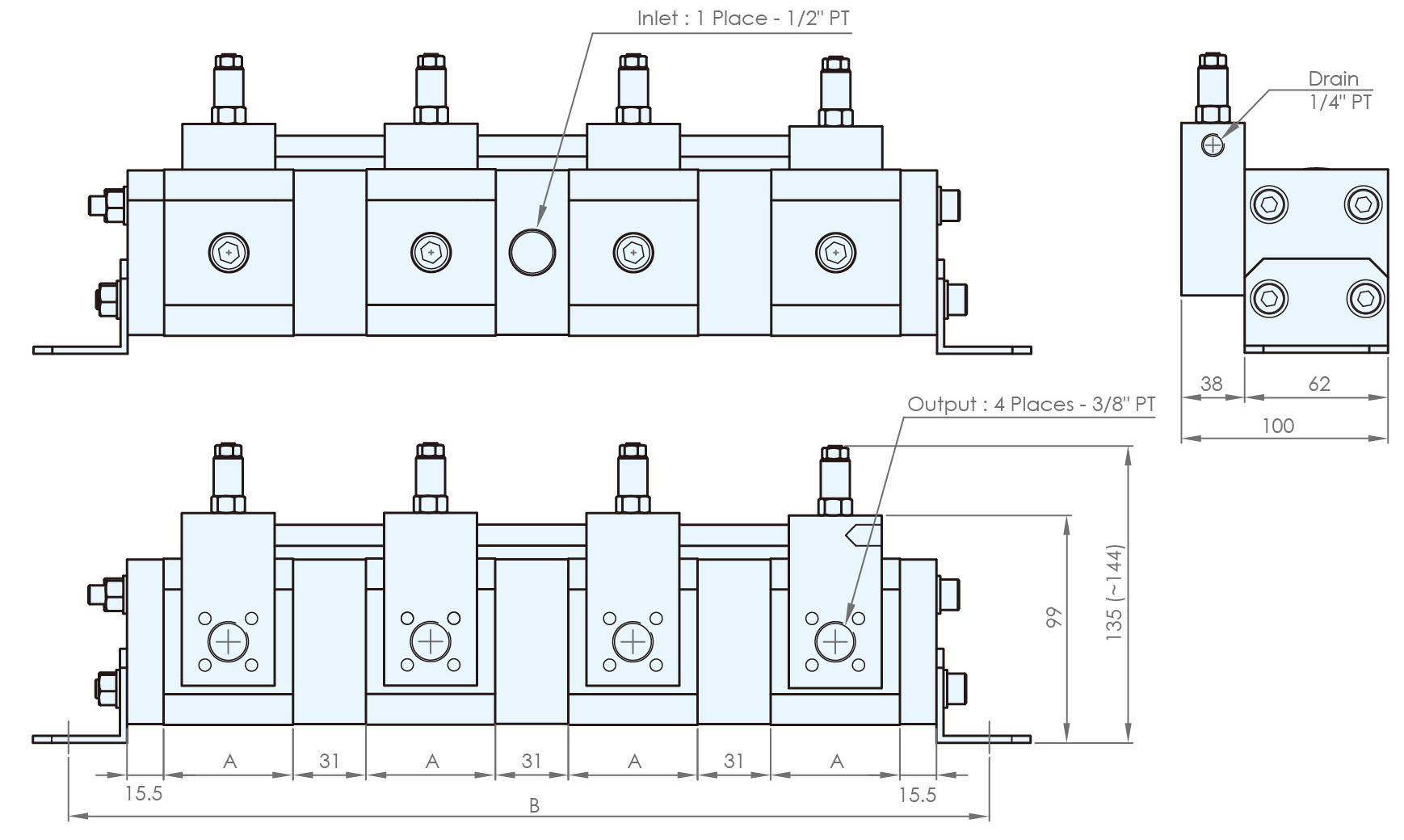

DFMN-104A-MOR
| Model | A | B | ||
|---|---|---|---|---|
| 102A | 103A | 104A | ||
| 2M | 39.6 | 187.2 | 257.8 | 328.4 |
| 3M | 45 | 198 | 274 | 350 |
| 4M | 47 | 202 | 280 | 358 |
| 6M | 55 | 218 | 304 | 390 |
| 8M | 61 | 230 | 322 | 414 |
