同步馬達

DFMN - 5 系列

DFMN - 5 系列

排量:40 ~ 90cc / rev
最高壓力:210kgf / cm² (3000psi)

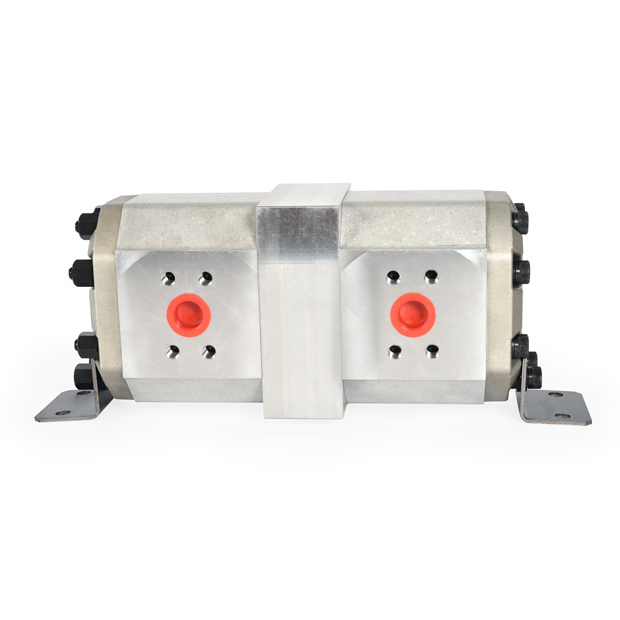

  • DFMN-502A-M_01.jpg

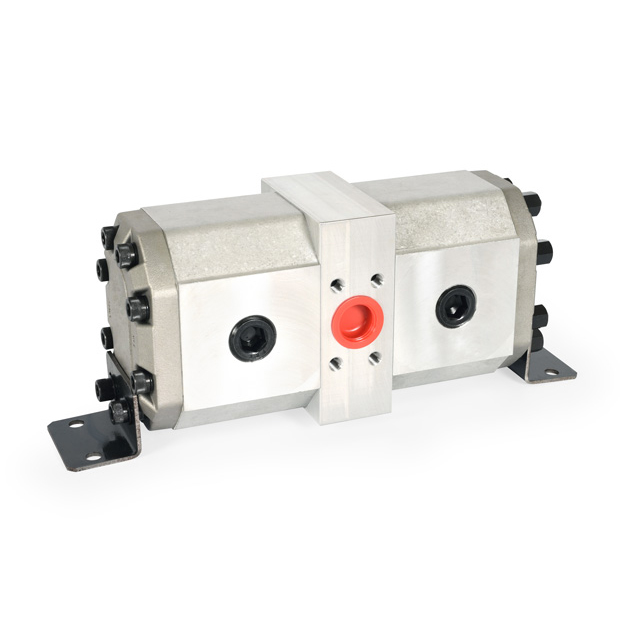

  • DFMN-502A-M_02.jpg

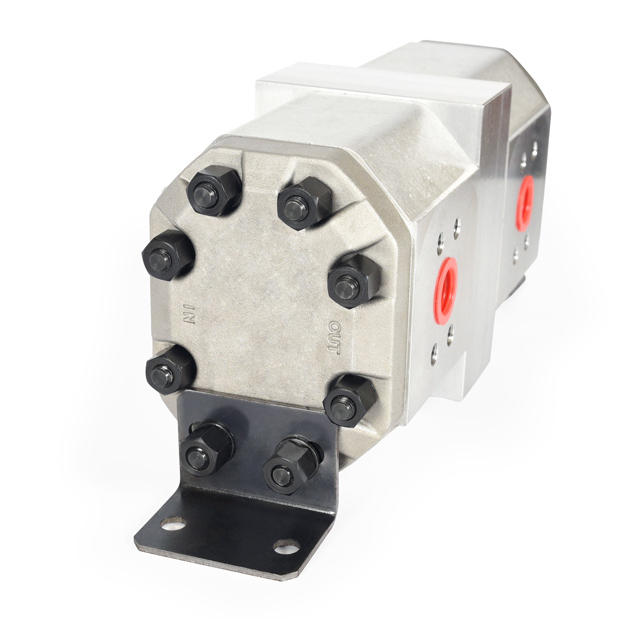

  • DFMN-502A-M_03.jpg
詳細介紹

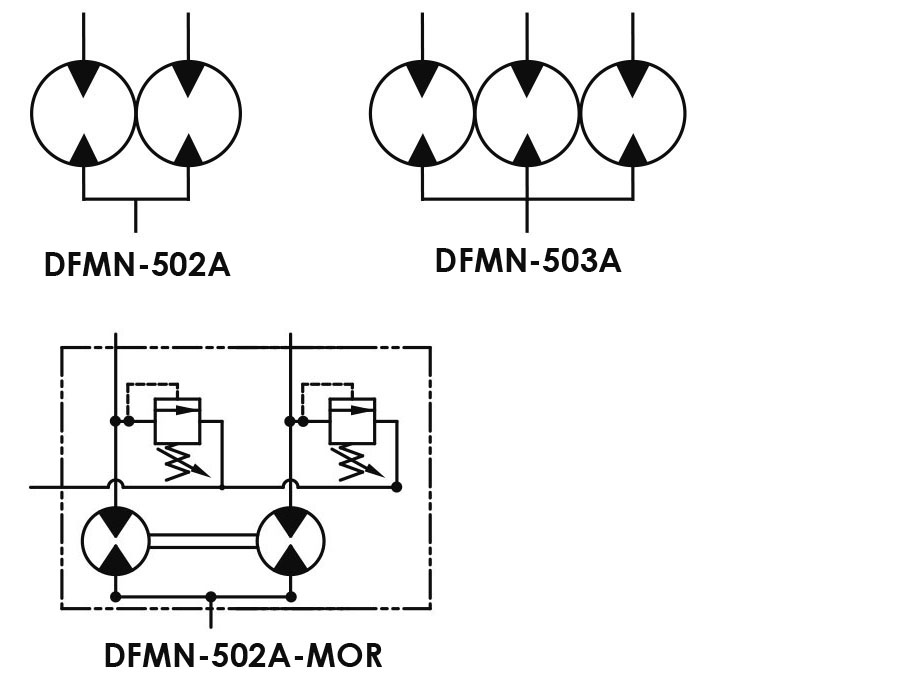

■ SCHEMATIC SYMBOL





■ ORDER CODES

DFMN-5 02A - 63 M
       1       2   -  3  4

1. Model Name : DFMN-5
2. Stations :
      02A: 2 stations
      03A: 3 stations
      04A: 4 stations
      05A: 5 stations
      06A: 6 stations
      07A: 7 stations
3. Flow Rate :
      40, 50, 55, 63, 75, 80, 90
4. Functional Type :
      M: synchronous flow divider
      MOR: with external drain relief valve


■ SPECIFICATIONS
Model Accurate
Displacement
Capacity

( cc/rev )
Operating
Pressure

( kgf/cm2 )
Speed
( r.p.m. )
Loaded Unloaded
DFMN-50*A-40 40 210 1000 2000
DFMN-50*A-50 50 210 1000 2000
DFMN-50*A-55 55 210 1000 2000
DFMN-50*A-63 63 210 1000 2000
DFMN-50*A-75 75 210 1000 2000
DFMN-50*A-80 80 210 1000 2000
DFMN-50*A-90 90 210 1000 2000
* The initial pressure : 30kgf/cm2

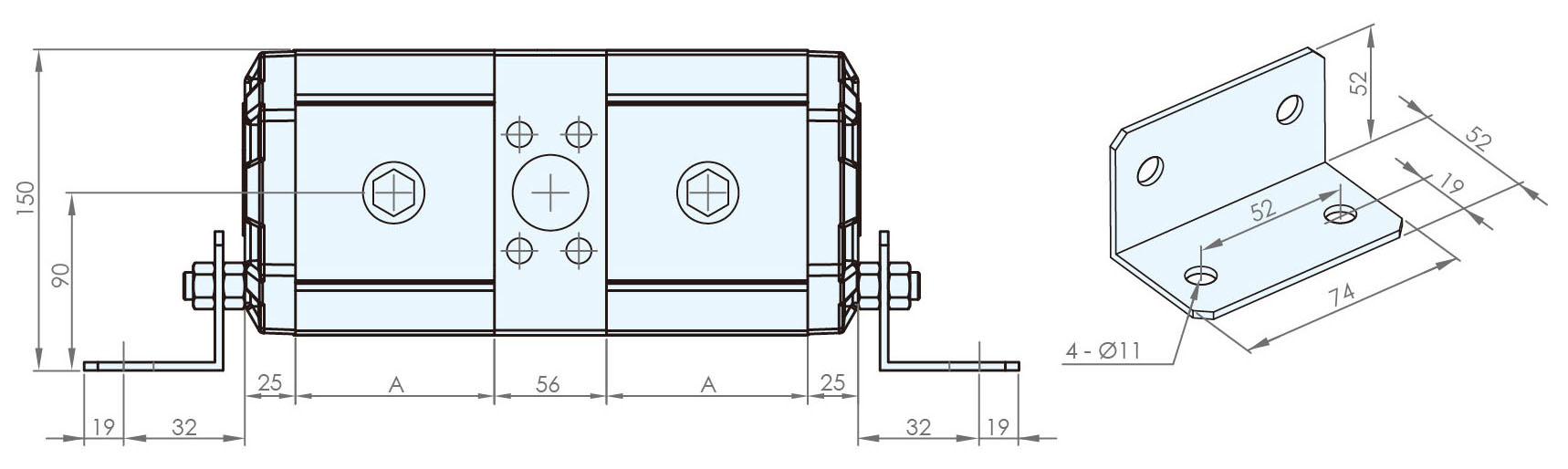

■ DIMENSIONS
( unit : mm )

DFMN-502A

Model 502A
40M 92
50M 102
55M 92
63M 98
75M 106
80M 110
90M 117



■ INLET & OUTLET SIZE  ( unit : mm )
