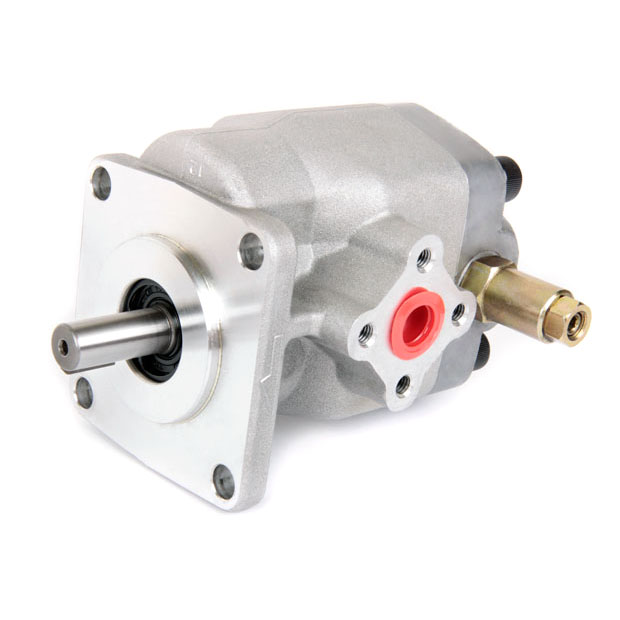

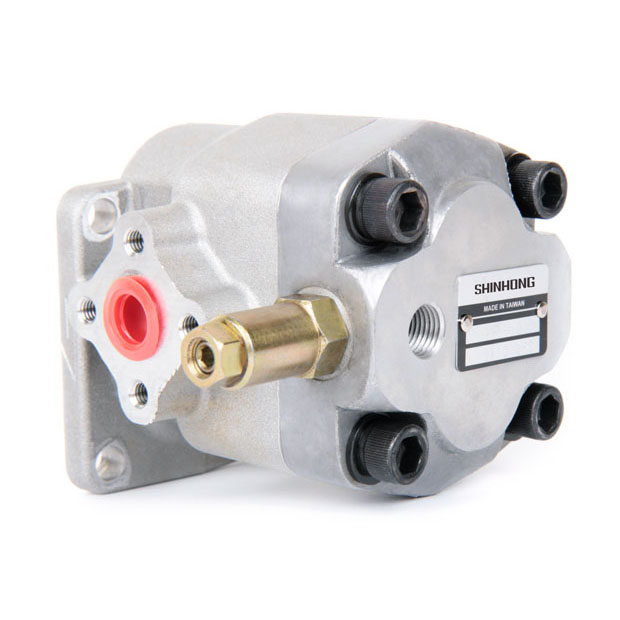

■ SCHEMATIC SYMBOL
■ ORDER CODES
PR1 - 2 R - X1 - 4BJ - P1 - S2
1 - 2 3 - 4 - 5 - 6 - 7
1. Model Name : PR1
2. Delivery Capacity :
1, 2, 25, 3, 4, 5, 6, 8, 9, 11, 12, 13
3. Rotation Direction :
R: clockwise
L: counter-clockwise

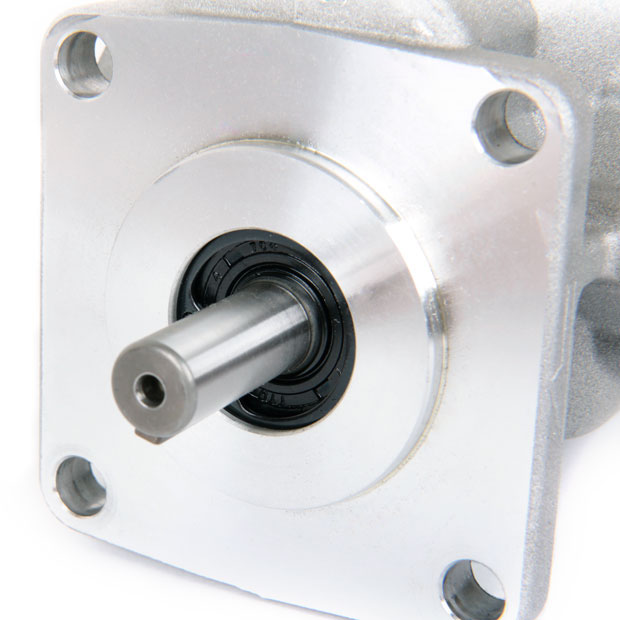

4. Shaft Type :
W: tang shaft
X: straight shaft
Y: spline shaft
Z: taper shaft
5. Flange Mounting Type :
4BJ: JIS 4-bolt
6. Inlet and Outlet :
F: flange type (F1)
G: PF, G, BSPP (G1~G2)
P: PT (P1~P2)
N: NPT (N1~N2)
7. Pressure Adj. Range :
S1: 5~70 kgf/cm2
S2: 40~250 kgf/cm2
■ SPECIFICATIONS
| Model | Accurate Displacement Capacity ( cc/rev ) |
Operating Pressure ( kgf/cm2 ) |
Max. Pressure ( kgf/cm2 ) |
Speed ( r.p.m. ) |
Weight ( kg ) |
||
|---|---|---|---|---|---|---|---|
| Rate | Max. | Min. | |||||
| PR1-1 | 1 | 210 | 250 | 1800 | 5000 | 900 | 1.65 |
| PR1-2 | 2 | 210 | 250 | 1800 | 5000 | 900 | 1.69 |
| PR1-3 | 3 | 210 | 250 | 1800 | 5000 | 850 | 1.7 |
| PR1-4 | 4 | 210 | 250 | 1800 | 4500 | 800 | 1.71 |
| PR1-6 | 6 | 210 | 250 | 1800 | 3500 | 700 | 1.72 |
| PR1-8 | 7.5 | 210 | 250 | 1800 | 3000 | 600 | 1.74 |
| PR1-9 | 9 | 210 | 250 | 1800 | 2500 | 550 | 1.74 |
| PR1-11 | 10.5 | 210 | 250 | 1800 | 2000 | 500 | 1.74 |
| PR1-12 | 12 | 175 | 210 | 1800 | 2000 | 500 | 1.76 |
| PR1-13 | 13 | 175 | 210 | 1800 | 2000 | 500 | 1.72 |
* Weight is for reference.

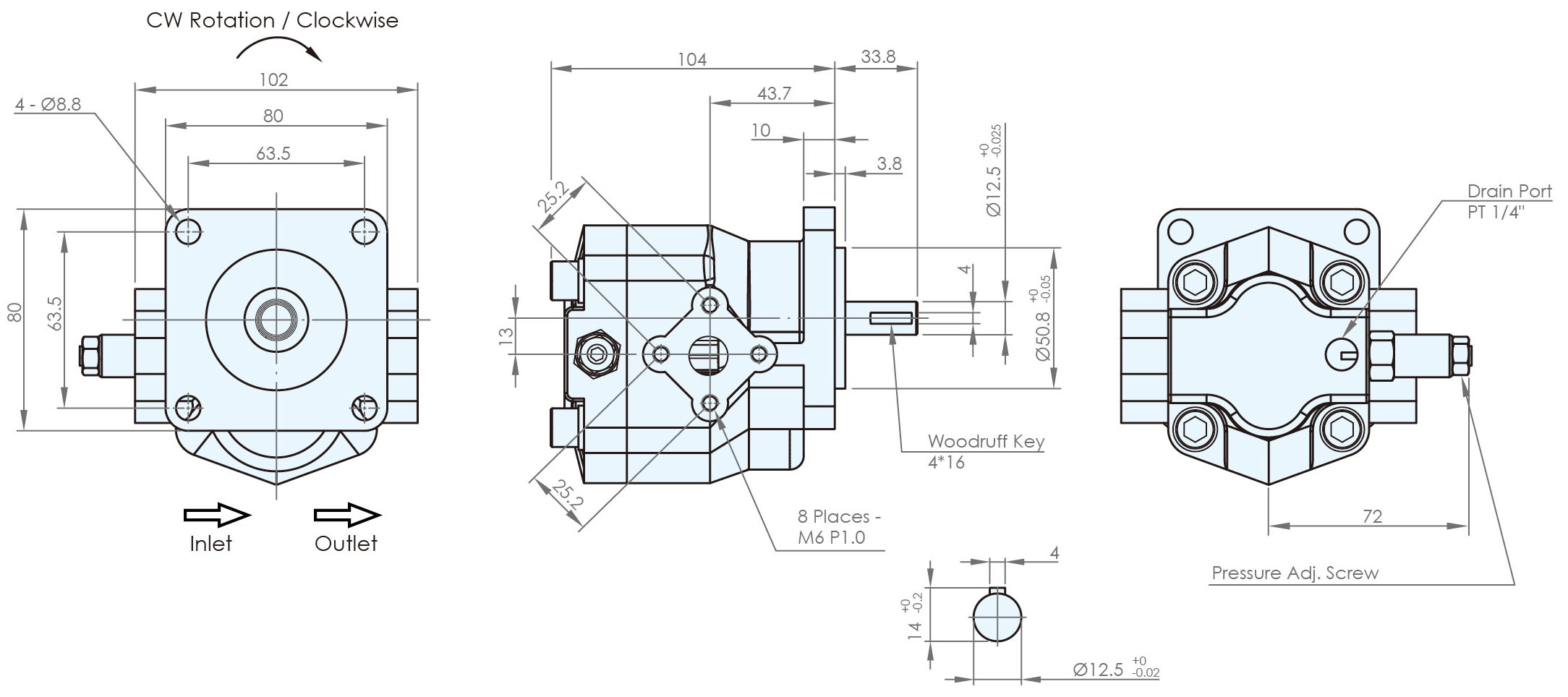

■ DIMENSIONS ( unit : mm )
PR1
■ DIMENSION of SHAFT ( unit : mm )
■ INLET & OUTLET SIZE ( unit : mm )
