齒輪泵附調壓閥

PR2

PR2

排量:0.8 ~ 7.8cc / rev
法蘭型式:SAE 2孔 / DIN 4孔 / European 4孔
最高壓力:250kgf / cm² (3500psi)

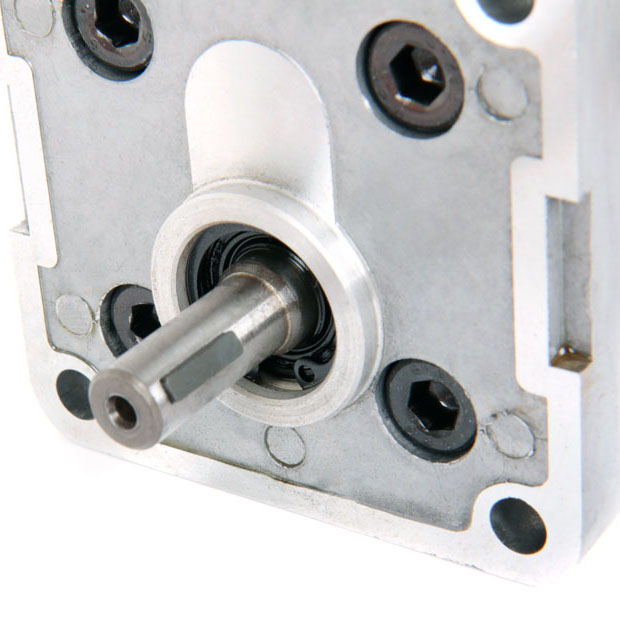

  • PR2-010_01.jpg

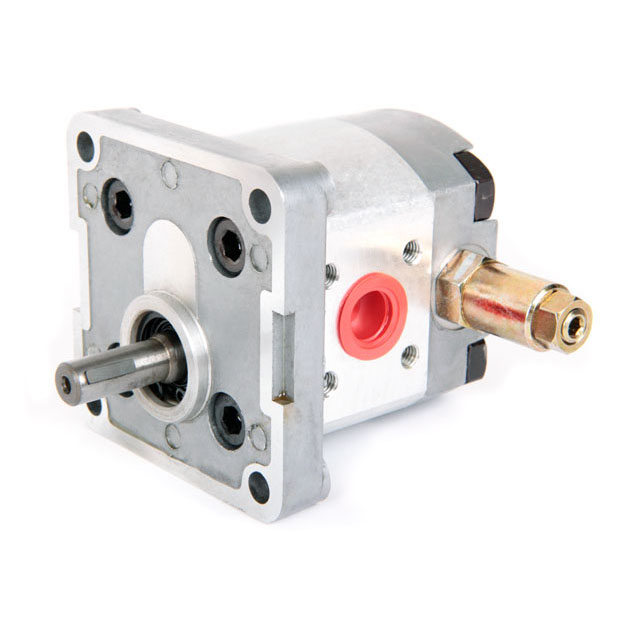

  • PR2-010_02.jpg

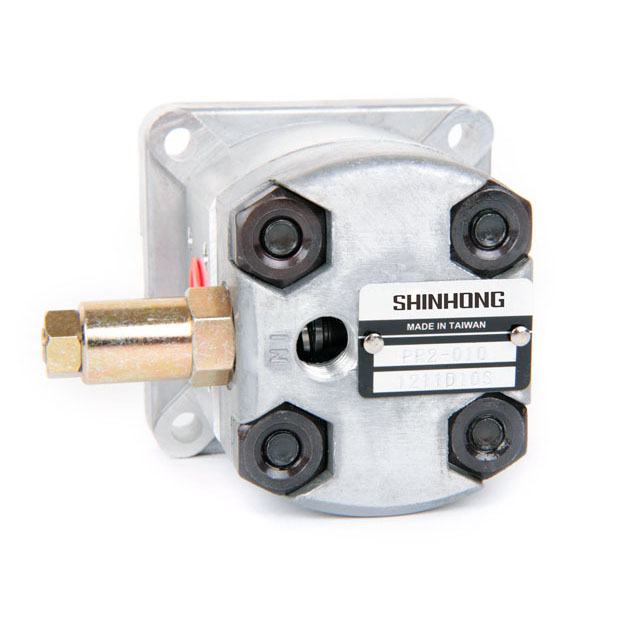

  • PR2-010_03.jpg
詳細介紹
■ SCHEMATIC SYMBOL





■ ORDER CODES

PR2 - 08 R - Y1 - 4BDB - P1 - S2
   1   -  2  3 -  4   -    5    -  6  -  7

1. Model Name : PR2
2. Delivery Capacity :
      08, 1, 2, 26, 3, 4, 5, 6, 8
3. Rotation Direction :
      R: clockwise
      L: counter-clockwise
4. Shaft Type :
      X: straight shaft
      Y: spline shaft
      Z: taper shaft
5. Flange Mounting Type :
      2B: SAE 2-bolt
      4BDA: DIN 4-bolt (type A)
      4BDB: DIN 4-bolt (type B)
      4BE: European 4-bolt
6. Inlet and Outlet :
      F: flange type (F1~F2)
      G: PF, G, BSPP (G1~G2)
      P: PT (P1~P2)
      N: NPT (N1~N2)
      U: UNF (U1~U2)
7. Pressure Adj. Range :
      S1: 5~70 kgf/cm2
      S2: 40~250 kgf/cm2



■ SPECIFICATIONS

Model Accurate
Displacement
Capacity

( cc/rev )
Operating
Pressure

( kgf/cm2 )
Max. Pressure
( kgf/cm2 )
Speed
( r.p.m. )
Weight
( kg )
Rate Max. Min.
PR2-08 0.8 210 250 1800 4500 1000 1.0
PR2-1 1 210 250 1800 4500 1000 1.0
PR2-2 2 210 250 1800 4500 600 1.05
PR2-3 3 210 250 1800 4500 600 1.15
PR2-4 4 210 250 1800 4000 600 1.18
PR2-5 5 210 250 1800 3200 600 1.2
PR2-6 6 210 250 1800 3200 600 1.3
PR2-8 7.8 175 210 1800 3200 600 1.4
* PR2-08, and PR2-26 do not belong to regular products. Customized service can be provided.
* Weight is for reference.

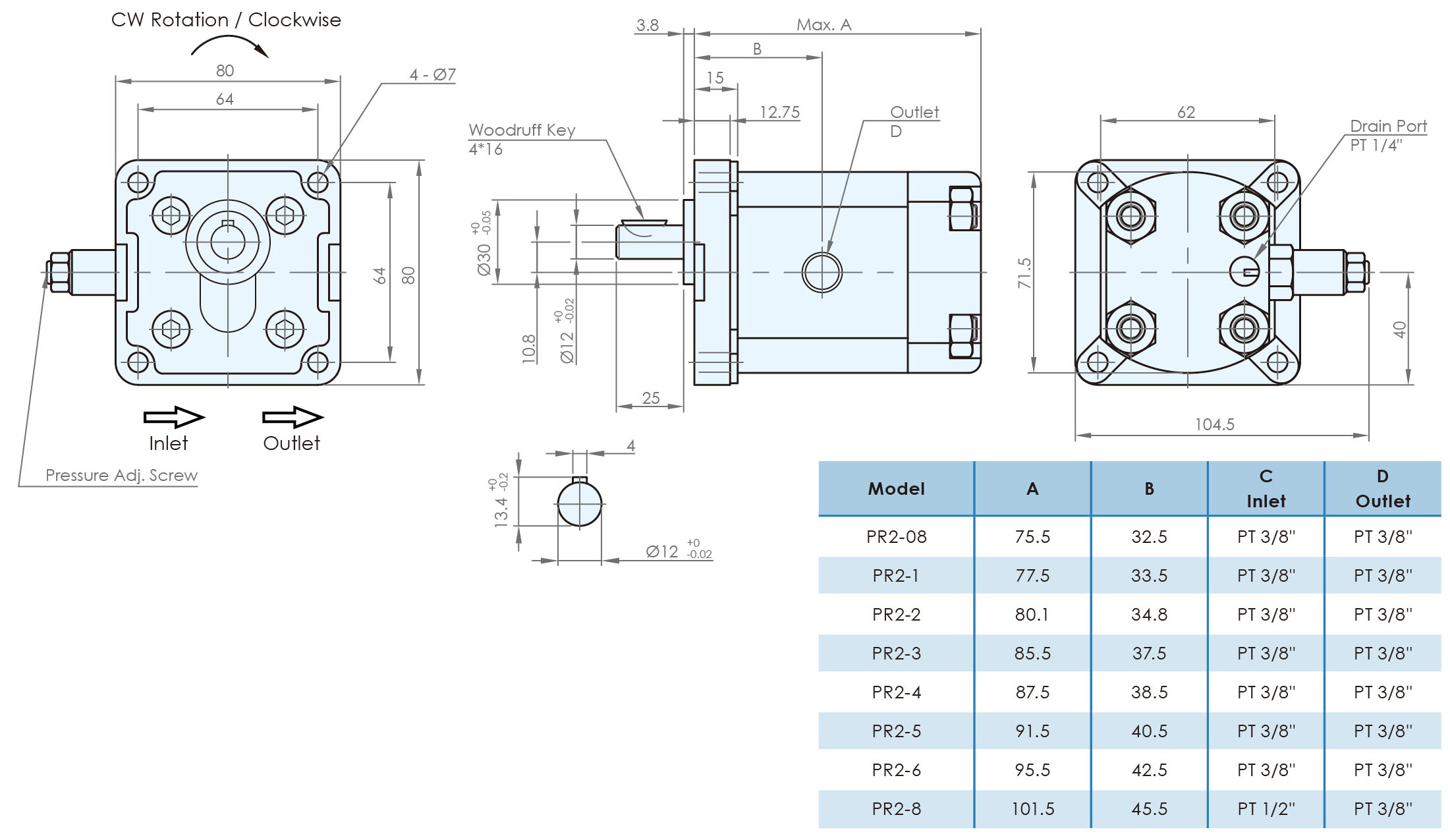

■ DIMENSIONS  ( unit : mm )

PR2




 DIMENSION of SHAFT  ( unit : mm )



■ INLET & OUTLET SIZE  ( unit : mm )
