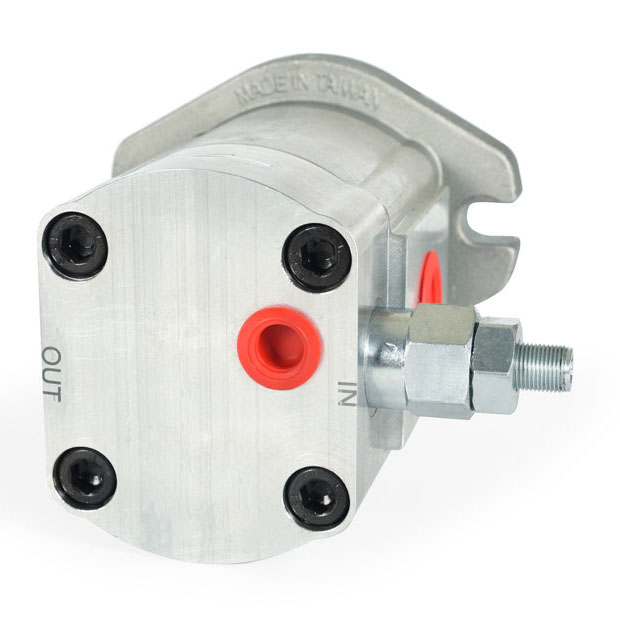

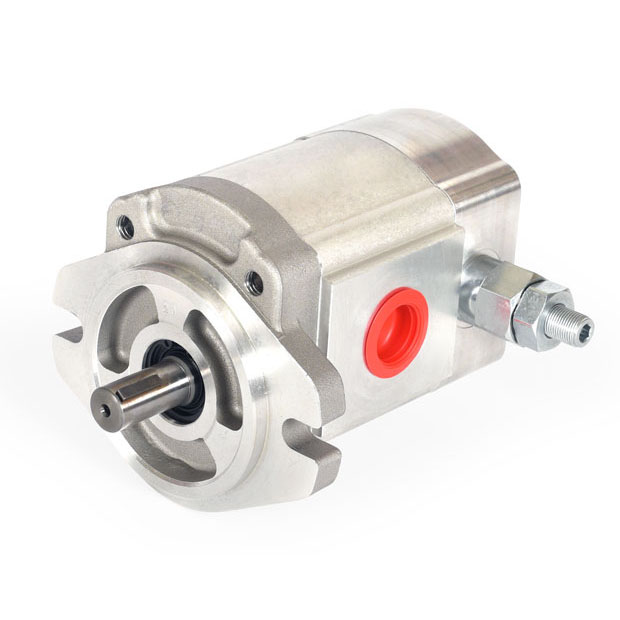

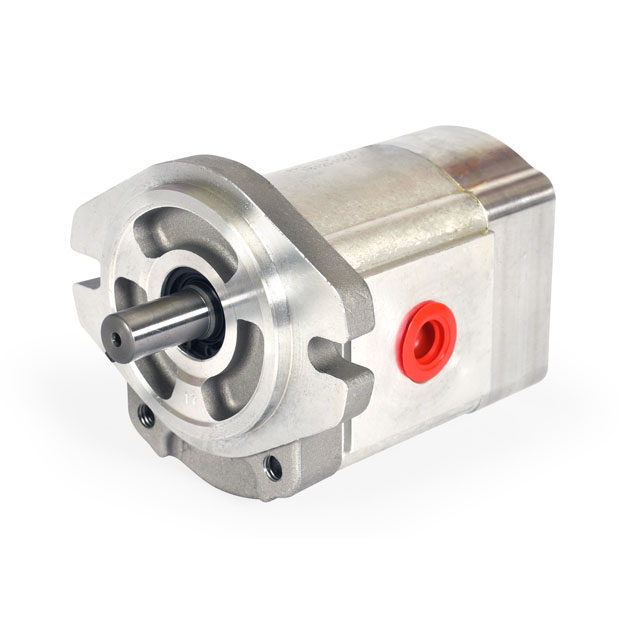

齒輪泵附調壓閥

PR3

PR3

排量:4 ~ 35cc / rev
法蘭型式:SAE 2孔 / DIN 4孔 / European 4孔
最高壓力:250kgf / cm² (3500psi)
  • PR3_2019_01.jpg
  • PR3_2019_02.jpg
  • PR3_2019_03.jpg
詳細介紹

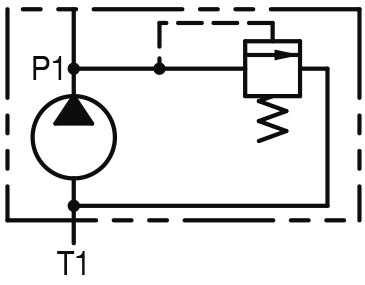

■ SCHEMATIC SYMBOL





■ ORDER CODES

PR3 - 13 R - Y1 - 2B - P1
   1  -  2  3  -  4  -  5  -  6

1. Model Name : PR3
2. Delivery Capacity :
      4, 6, 8, 11, 13, 14, 17, 19, 23, 25, 28, 30, 33, 35
3. Rotation Direction :
      R: clockwise
      L: counter-clockwise
4. Shaft Type :
      X: straight shaft
      Y: spline shaft
      Z: taper shaft
5. Flange Mounting Type :
      2B: SAE 2-bolt
      4BD: DIN 4-bolt
      4BE: European 4-bolt
6. Inlet and Outlet :
      F: flange type (F1~F6)
      G: PF, G, BSPP (G1~G2)
      P: PT (P1~P2)
      N: NPT (N1~N2)
      U: UNF (U1~U2)




■ SPECIFICATIONS
Model Accurate
Displacement
Capacity

( cc/rev )
Operating
Pressure

( kgf/cm2 )
Max. Pressure
( kgf/cm2 )
Speed
( r.p.m. )
Weight
( kg )
Rate Max. Min.
PR3-4 4 210 250 1800 4000 700 2.83
PR3-6 6 210 250 1800 4000 700 2.91
PR3-8 8.4 210 250 1800 3500 700 2.99
PR3-11 11 210 250 1800 3000 600 3.14
PR3-13 13 210 250 1800 3000 600 3.24
PR3-14 14.3 210 250 1800 3000 500 3.3
PR3-17 16.5 210 250 1800 3000 500 3.41
PR3-19 19.2 210 250 1800 3000 500 3.53
PR3-23 23 210 250 1800 3000 500 3.73
PR3-25 25 175 210 1800 2800 500 3.78
PR3-28 28 175 210 1800 2500 500 3.89
PR3-30 30 175 210 1800 2500 500 3.99
PR3-33 33 140 175 1200 2500 500 4.14
PR3-35 35 125 140 1200 2500 500 4.25
* Weight is for reference.

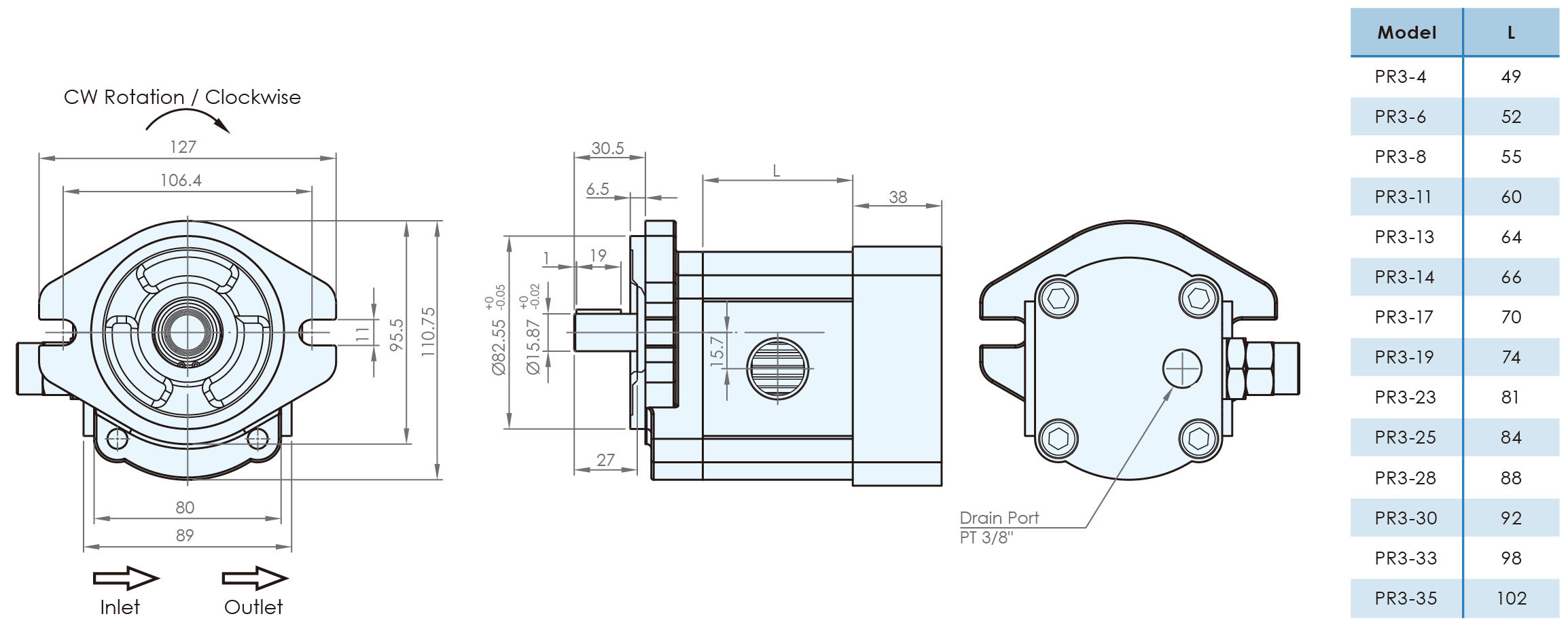

■ DIMENSIONS  ( unit : mm )

PR3





 DIMENSION of SHAFT  ( unit : mm )



■ INLET & OUTLET SIZE  ( unit : mm )
